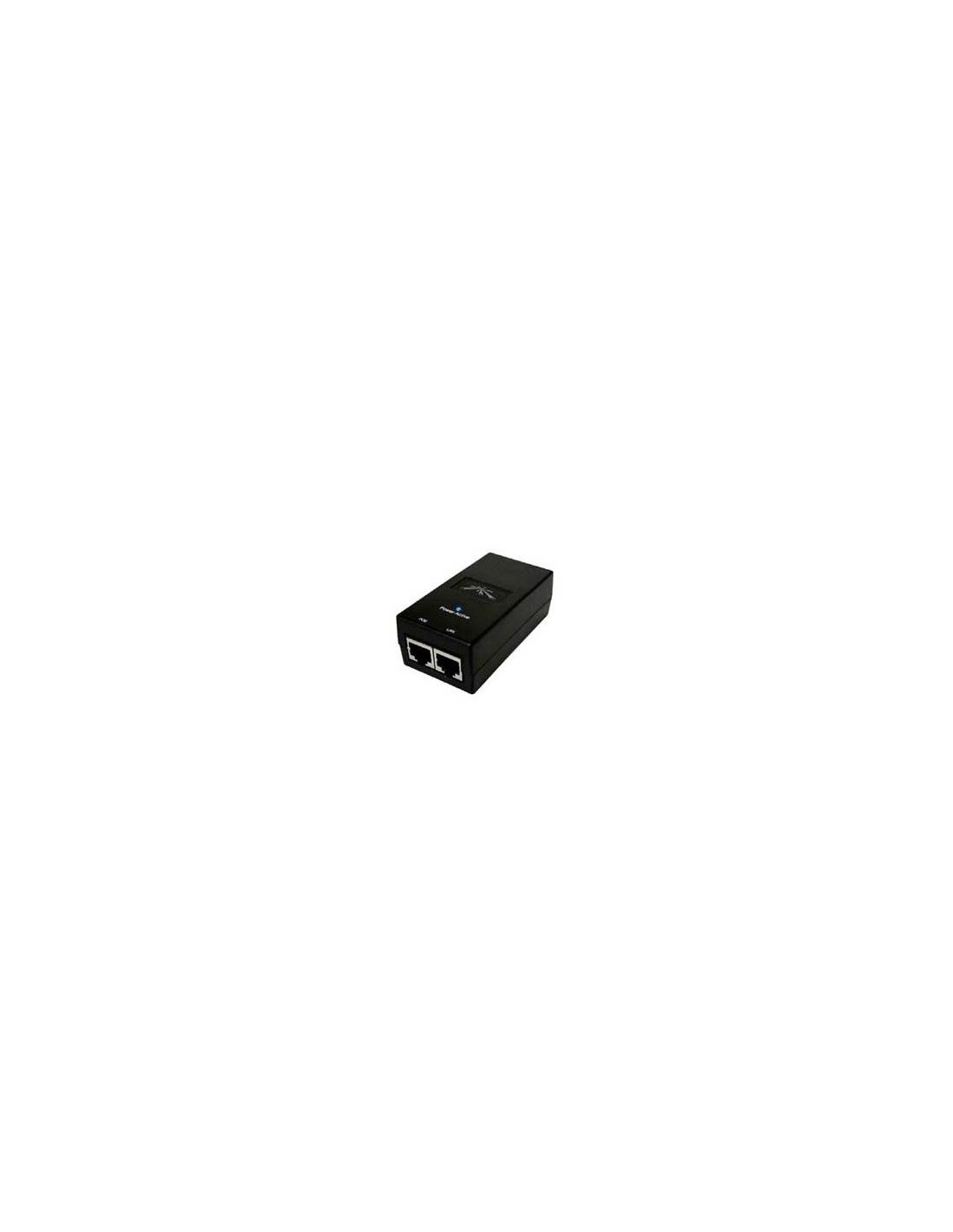

Poe - 15 - designed by ubiquiti - is now shipping. the poe - 15 (15v - 12w)
features earth grounding - esd protectión - power led - and is available in usa
(nema 5 - 15) and eu (cee 7 - 16) versións. msrp $9.
output voltage 15vdc @ 0.8a
input voltage 90 - 260vac @ 47 - 63hz
input current 0.3a @ 120vac - 0.2a @230vac
efficiency 70+%
output ripple 1% max
switching frquency 200khz
line regulatión + - - 0.5%
load regulatión + - - 1%
operating temperature - 10c to +60 deg c
storage temperature - 20c to +85 deg c
operating humidity 5% to 90% non condensing
size (l x w x h) 85 x 43 x 30 (mm)
features earth grounding - esd protectión - power led - and is available in usa
(nema 5 - 15) and eu (cee 7 - 16) versións. msrp $9.
output voltage 15vdc @ 0.8a
input voltage 90 - 260vac @ 47 - 63hz
input current 0.3a @ 120vac - 0.2a @230vac
efficiency 70+%
output ripple 1% max
switching frquency 200khz
line regulatión + - - 0.5%
load regulatión + - - 1%
operating temperature - 10c to +60 deg c
storage temperature - 20c to +85 deg c
operating humidity 5% to 90% non condensing
size (l x w x h) 85 x 43 x 30 (mm)
POE-15
