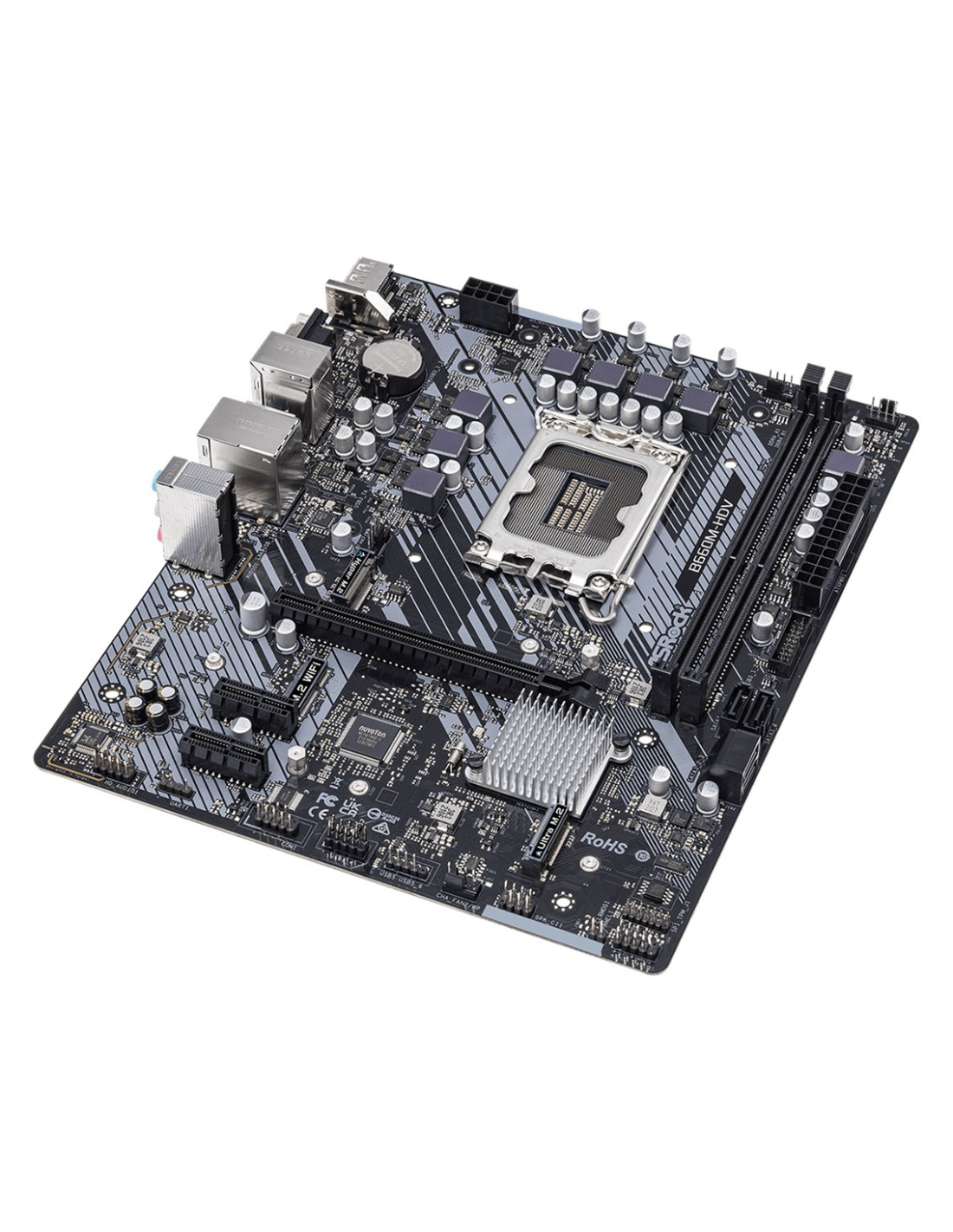

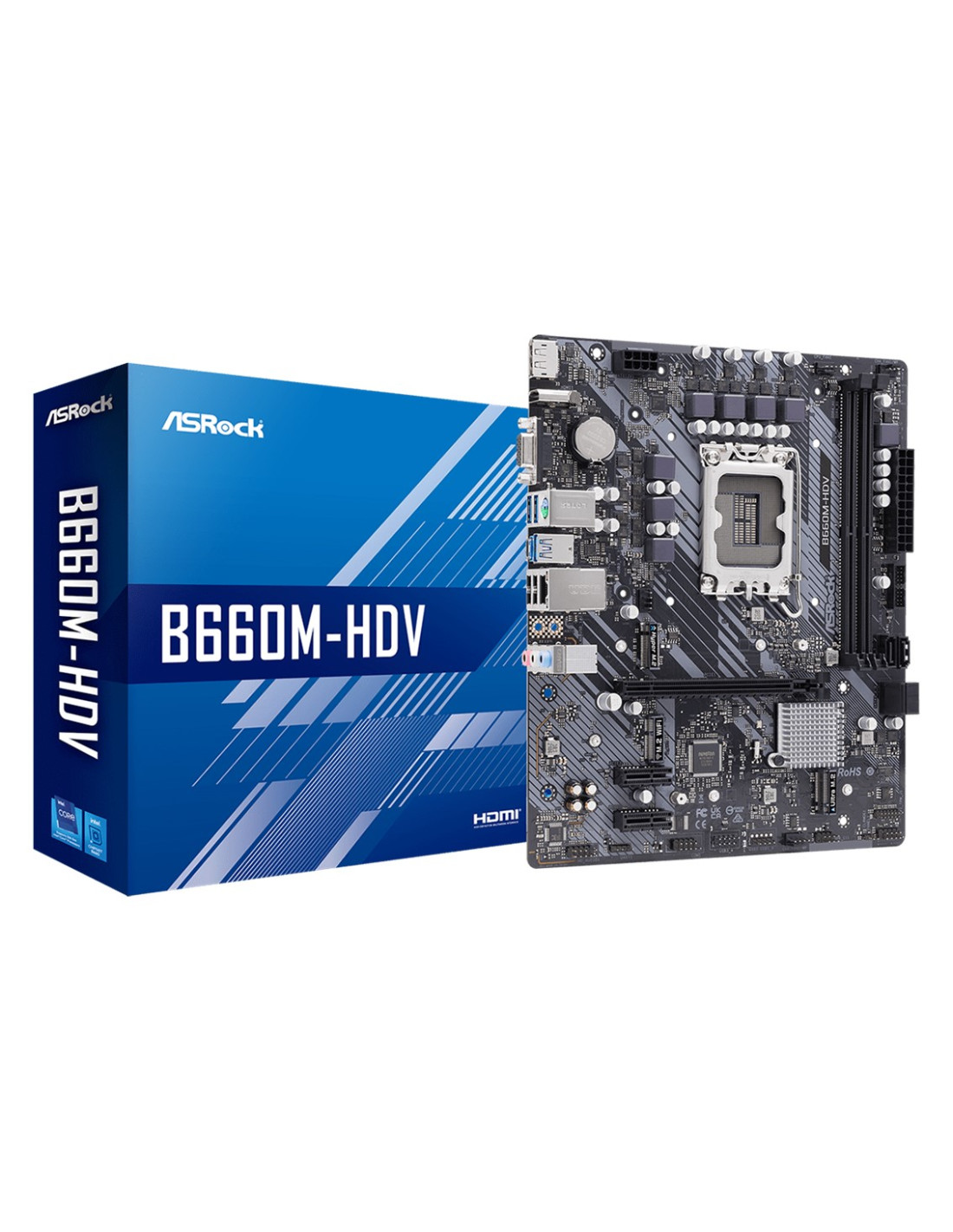

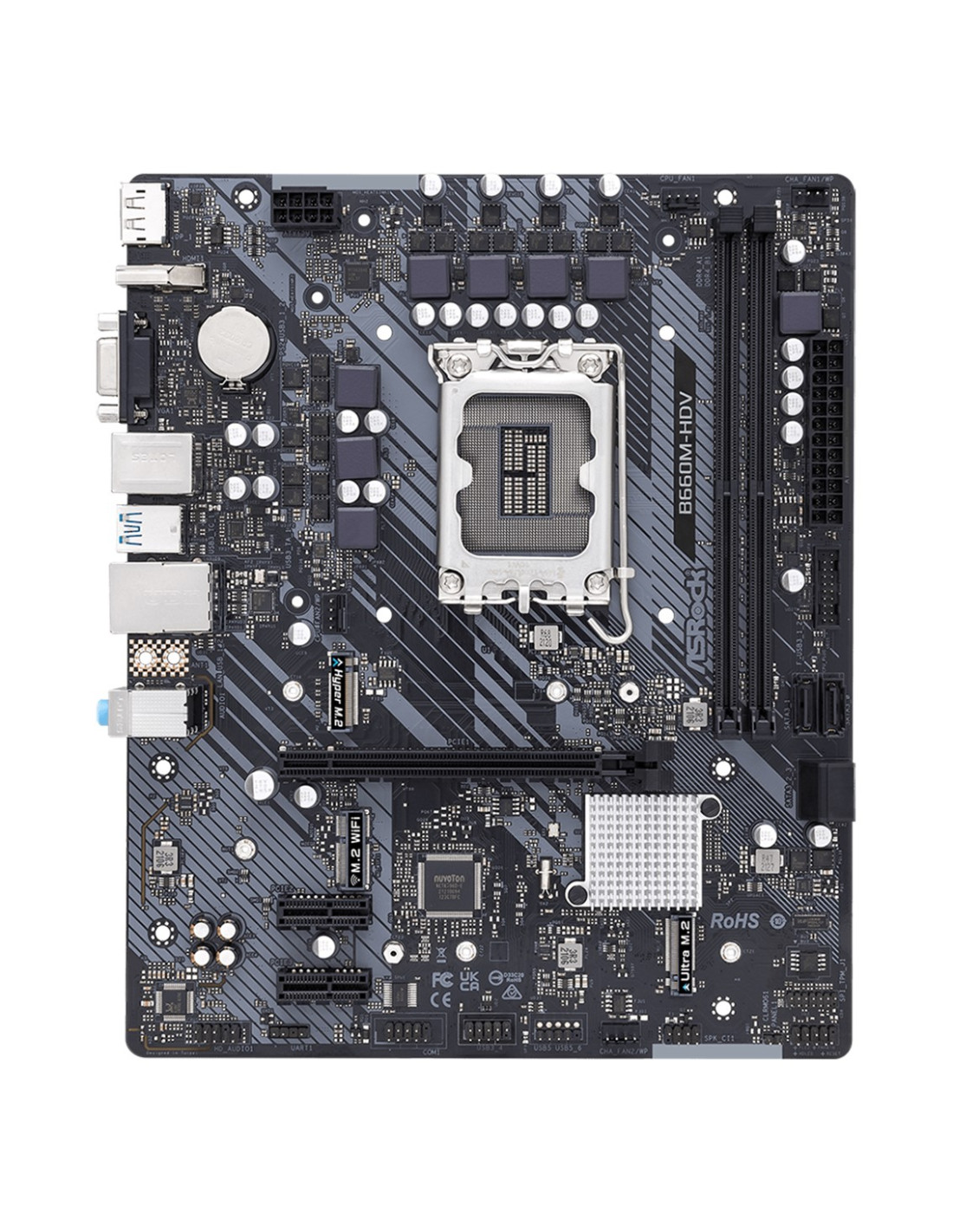

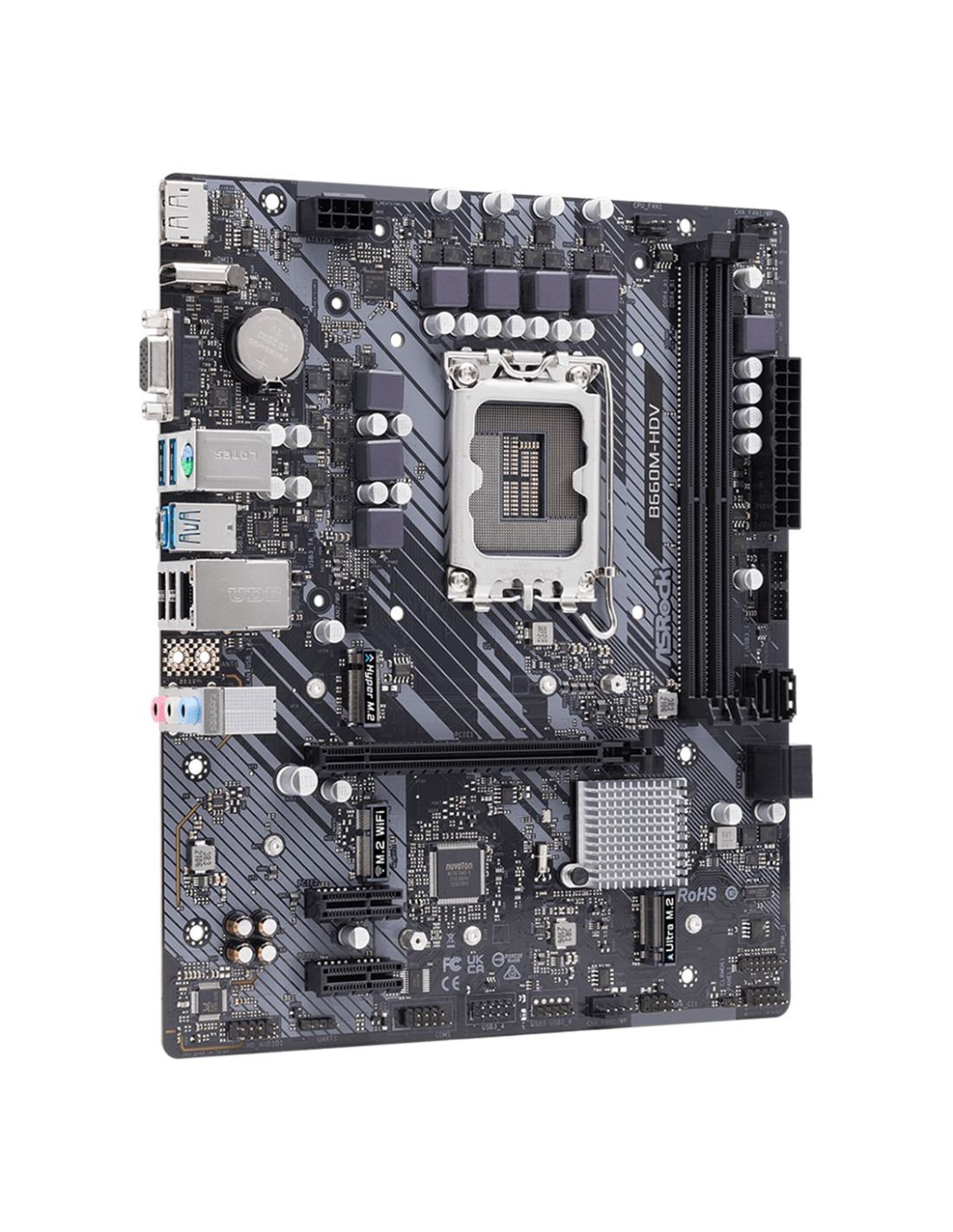

Placa base asrock intel lga 1700 b660m - hdv ddr4x2 64gb hdmi displayport d - sub micro atx

B660m - hdv

compatible con procesadores intel® core de 12.ª generación
(lga1700) diseño de potencia de 6 fases
soporta ddr4 5066mhz (oc)
1 pcie 4.0 x16 - 2 pcie 3.0 x1
1 m.2 clave - e para wifi
opciónes de salida de gráficos: hdmi - displayport - d - sub
realtek alc887 - 897 códec de audio hd de 7.1 canales - audio nahimic
4 sata3
1 hyper m.2 (pcie gen4 x4)
1 ultra m.2 (pcie gen3 x4 y sata3)
6 usb 3.2 gen1 (3 traseros - 1 trasero tipo c - 2 delanteros)
5 usb 2.0 (2 traseros - 3 delanteros)
lan intel® gigabit
unique feature
asrock super alloy
- premium power choke
- sapphire black pcb
- high density glass fabric pcb
asrock hyper m.2 (pcie gen4x4)
asrock full spike protectión (for all usb - audio - lan ports)
asrock live update & app shop
cpu
- supports 12th gen intel® core processors (lga1700)
- digi power design
- 6 power phase design
- supports intel® hybrid technology
- supports intel® turbo boost max 3.0 technology
chipset
- intel® b660
memory
- dual channel ddr4 memory technology
- 2 x ddr4 dimm slots
- supports ddr4 non - ecc - un - buffered memory up to 5066+(oc)*
- supports ecc udimm memory modules (operate in non - ecc mode)
- max. capacity of system memory: 64gb
- supports intel® extreme memory profile (xmp) 2.0

*supports ddr4 3200 natively.
bios
- 128mb ami uefi legal bios with multilingual gui support
- acpi 6.0 compliant wake up events
- smbios 2.7 support
- cpu core - cache - cpu gt - dram - vccin aux - +1.05v proc - +0.82v pch -
+1.05v pch voltage multi - adjustment
graphics
- intel® xe graphics architecture (gen 12)
- three graphics output optións: d - sub - hdmi and displayport 1.4
- supports hdmi 2.1 tmds compatible with max. resolutión up to 4k x 2k
(4096x2160) @ 60hz
- supports displayport 1.4 with dsc (compressed) max. resolutión up to
8k (7680x4320) @ 60hz - 5k (5120x3200) @ 120hz
- supports d - sub with max. resolutión up to 1920x1200 @ 60hz
- supports hdcp 2.3 with hdmi 2.1 tmds compatible and displayport 1.4
ports

*intel® uhd graphics built - in visuals and the vga outputs can be
supported only with processors which are gpu integrated.
audio
- 7.1 ch hd audio (realtek alc897 - 887 audio codec)
- supports surge protectión
lan
- gigabit lan 10 - 100 - 1000 mb - s
- giga phy intel® i219v
- supports wake - on - lan
- supports lightning - esd protectión
- supports energy efficient ethernet 802.3az
- supports uefi pxe
slots
- 1 x pcie gen4x16 slot*
- 2 x pcie gen3x1 slots
- 1 x m.2 socket (key e) - supports type 2230 wifi - bt pcie wifi module

*supports nvme ssd as boot disks
storage
- 4 x sata3 6.0 gb - s connectors*
- 1 x hyper m.2 socket (m2_1 - key m) - supports type 2260 - 2280 pcie
gen4x4 (64 gb - s) mode**
- 1 x ultra m.2 socket (m2_2 - key m) - supports type 2260 - 2280 sata3 6.0
gb - s & pcie gen3x4 (32 gb - s) modes**

*if m2_2 is occupied by a sata - type m.2 device - sata3_3 will be
disabled.

**supports intel® optane technology (m2_2 only)
supports intel® volume management device (vmd)
supports nvme ssd as boot disks
supports asrock u.2 kit
raid
- supports raid 0 - raid 1 - raid 5 and raid 10 for sata storage devices
connector
- 1 x com port header
- 1 x spi tpm header
- 1 x chassis intrusión and speaker header
- 1 x cpu fan connector (4 - pin)*
- 1 x cpu - water pump fan connector (4 - pin) (smart fan speed control)**
- 2 x chassis - water pump fan connectors (4 - pin) (smart fan speed
control)*** - 1 x 24 pin atx power connector
- 1 x 8 pin 12v power connector
- 1 x front panel audio connector
- 2 x usb 2.0 headers (support 3 usb 2.0 ports) (supports esd protectión)
- 1 x usb 3.2 gen1 header (supports 2 usb 3.2 gen1 ports) (supports esd
protectión)

*the cpu fan connector supports the cpu fan of maximum 1a (12w) fan
power.

**the cpu - water pump fan supports the water cooler fan of maximum
2a (24w) fan power.

***the chassis - water pump fan supports the water cooler fan of
maximum 2a (24w) fan power.
cpu_fan2 - wp and cha_fan1~2 - wp can auto detect if 3 - pin or 4 - pin fan is
in use.

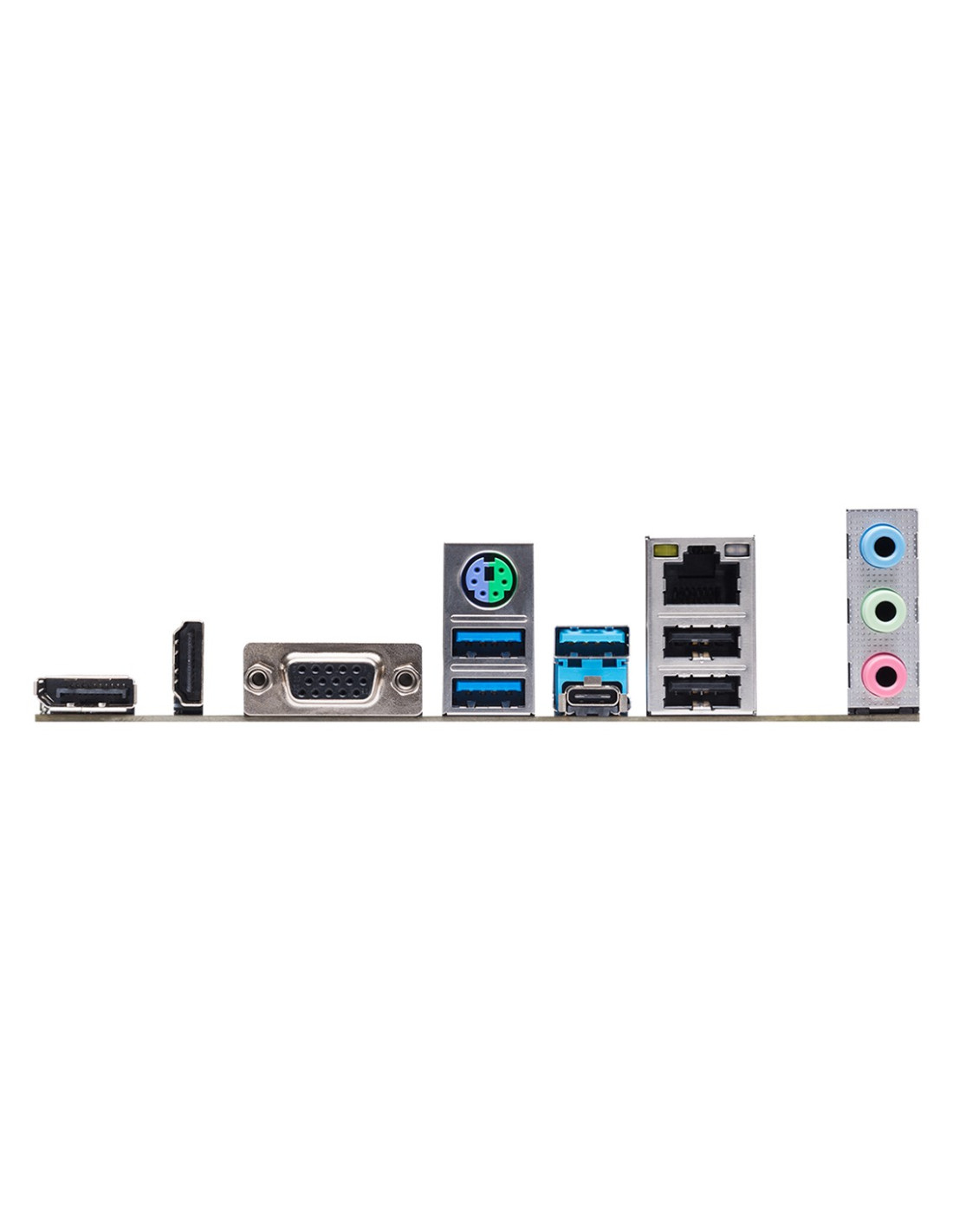

rear panel i - o
- 2 x antenna mounting points
- 1 x ps - 2 mouse - keyboard port
- 1 x d - sub port
- 1 x hdmi port
- 1 x displayport 1.4
- 3 x usb 3.2 gen1 type - a ports (supports esd protectión)
- 1 x usb 3.2 gen1 type - c port (supports esd protectión)
- 2 x usb 2.0 ports (supports esd protectión)
- 1 x rj - 45 lan port with led (act - link led and speed led)
- hd audio jacks: line in - front speaker - microphone
software and uefi
software
- asrock motherboard utility (a - tuning)
- asrock xfast lan
uefi
- asrock ez mode
- asrock full hd uefi
- asrock my favorites in uefi
- asrock instant flash
- asrock internet flash
- asrock easy raid installer

*these utilities can be downloaded from asrock live update & app
shop.
support cd
- drivers - utilities - antivirus software (trial versión)
accessories
- quick installatión guide - support cd - i - o shield
- 2 x sata data cables
- 3 x screws for m.2 sockets
hardware monitor
- fan tachometer: cpu - cpu - water pump - chassis - water pump fans
- quiet fan (auto adjust chassis fan speed by cpu temperature): cpu -
cpu - water pump - chassis - water pump fans
- fan multi - speed control: cpu - cpu - water pump - chassis - water pump
fans - case open detectión
- voltage monitoring: cpu vcore - +1.05 pch - dram - vccin aux - +1.05v
proc - +0.82v pch - +12v - +5v - +3.3v
form factor
- micro atx form factor: 9.6 - in x 7.9 - in - 24.4 cm x 20.1 cm
- solid capacitor design
os
- microsoft® windows® 10 64 - bit - 11 64 - bit
certificatións
- fcc - ce
- erp - eup ready (erp - eup ready power supply is required)
