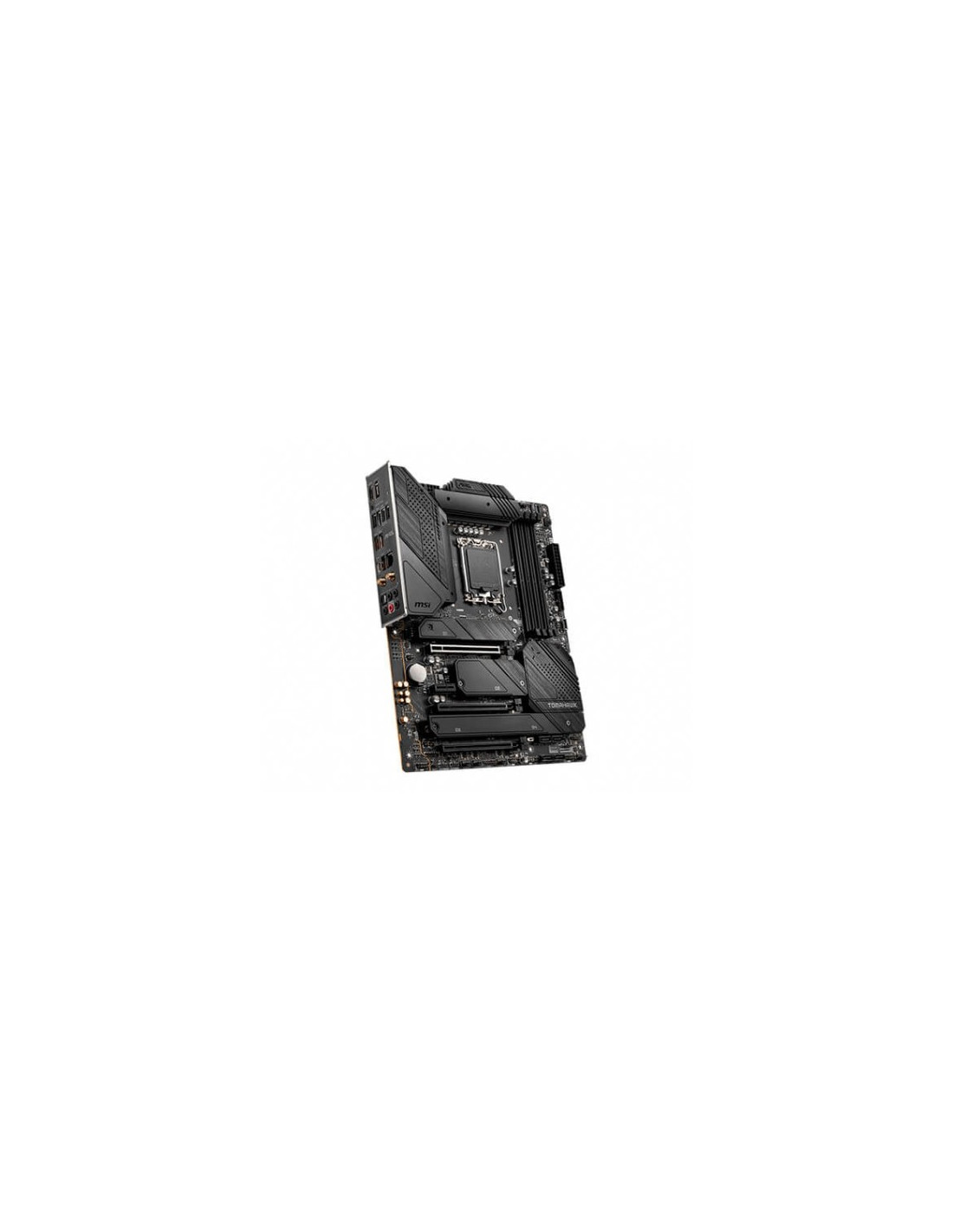

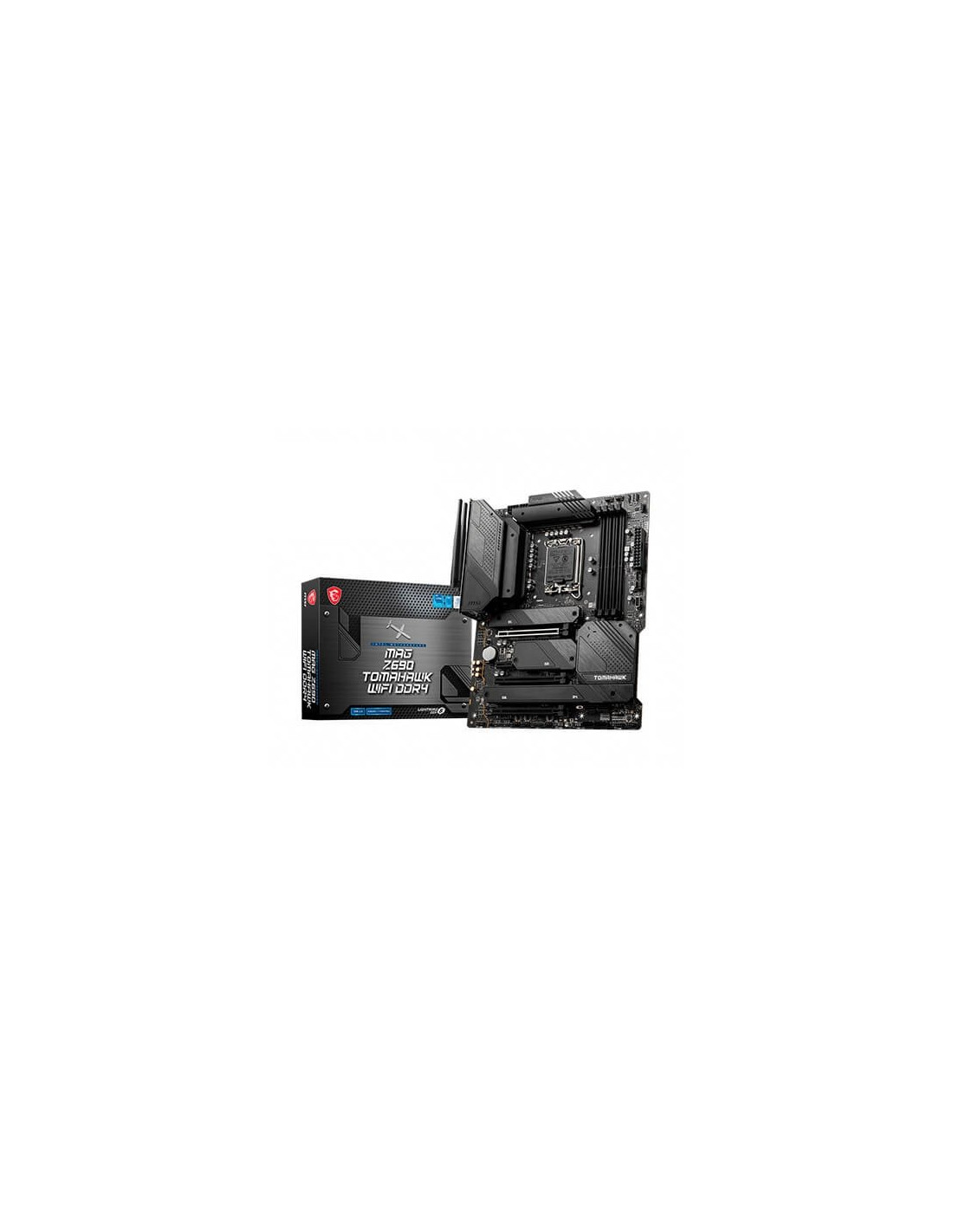

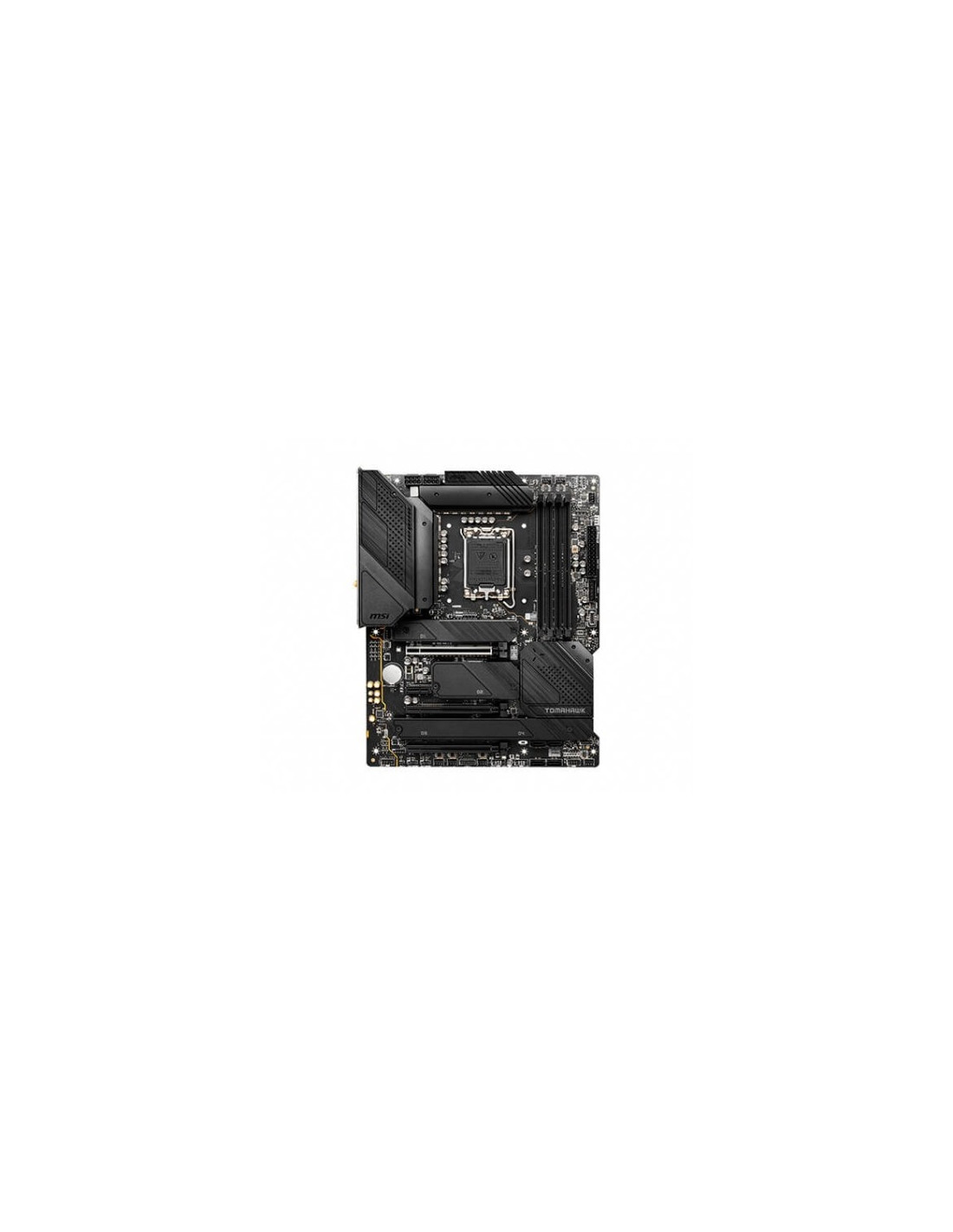

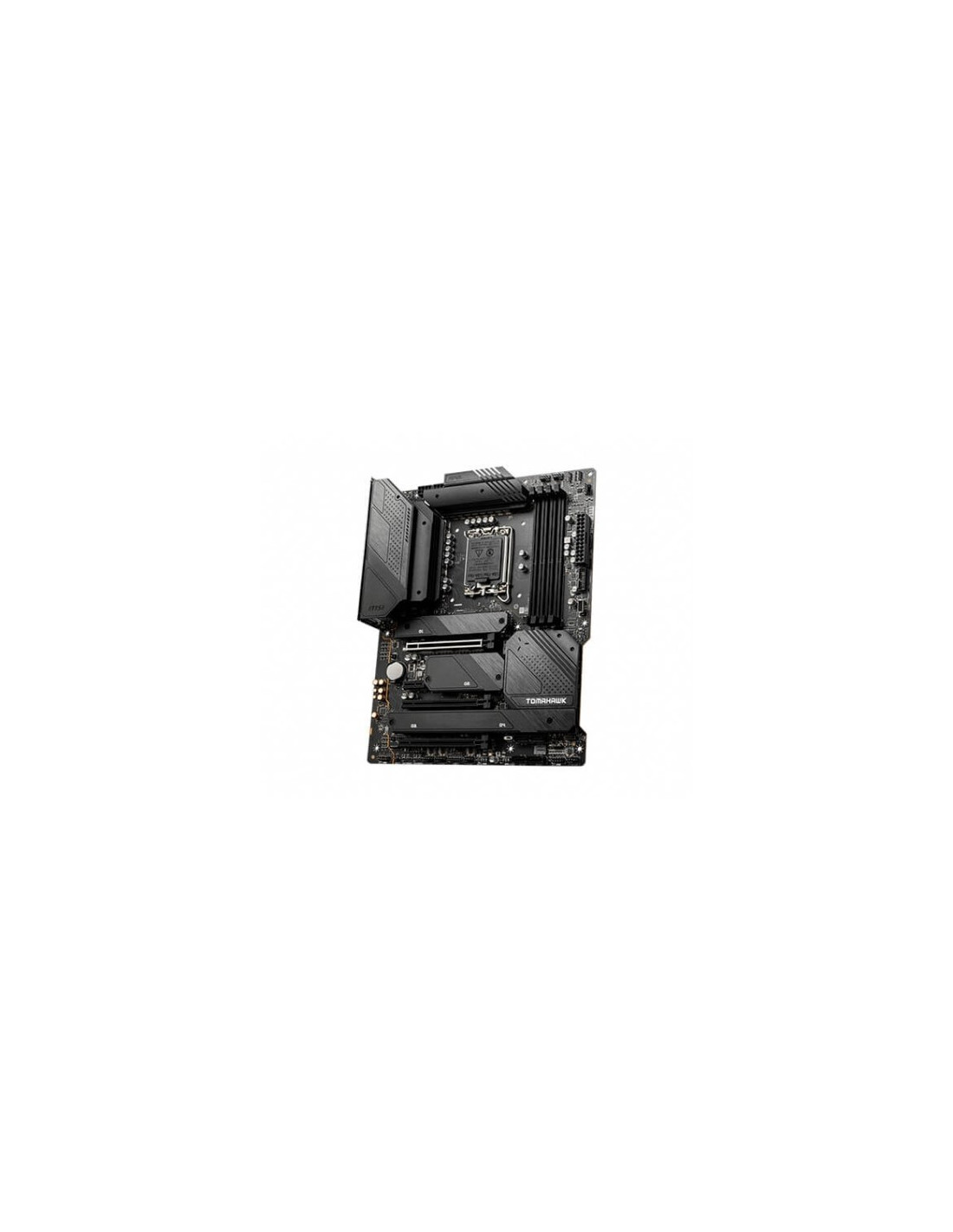

Placa base msi 1700 mag z690 tomahawk wifi ddr4 atx - 4 x ddr4 - 6 x sata 6 - usb tipo c - usb 3.2 - 2 x usb 2.0

Las placas base msi le permiten administrar velocidades y temperaturas
para todos los ventiladores de su sistema y cpu. total fan control le
permite verificar las características de su sistema principal en una interfaz
gráfica simplificada. también puede configurar hasta 4 objetivos de
temperatura para la cpu y la placa base - que ajustarán las velocidades del
ventilador automáticamente.
características:

admite procesadores intel® core - pentium® gold y celeron® de 12.a
generación para zócalo lga 1700
admite memoria ddr4 - hasta 5200 (oc) mhz
solución térmica premium: el diseño de disipador de calor extendido y
m.2 shield frozr están diseñados para un sistema de alto rendimiento y
trabajos continuos solución lan 2.5g e intel wi - fi: solución de red
mejorada para uso profesiónal y multimedia. ofrece una conexión de red
segura - estable y rápida lightning m.2: la ejecución en pcie gen 5
maximiza el rendimiento de los ssd basados en nvme
lightning usb 20g: puerto usb 3.2 gen 2x2 incorporado - ofrece una
velocidad de transmisión de 20 gbps - 4 veces más rápido que usb 3.2 gen 1
audio boost 5: recompense sus oídos con calidad de sonido de estudio
para la experiencia de juego más envolvente
multi - gpu: con ranuras pcie de armadura de acero. compatible con amd
crossfire


especificaciónes:

processor
supports 12th gen intel® core - pentium® gold and celeron®
processors 1 processor socket lga1700
please go to msi.com to get the newest support status as new
processors are released.
see supported processors
chipset
intel® z690 chipset
memory
4x ddr4 memory slots - support up to 128gb 1
supports 1r 2133 - 2666 - 2933 - 3200 mhz (by jedec & por)
max overclocking frequency:
1dpc 1r max speed up to 5200+ mhz
1dpc 2r max speed up to 4800+ mhz
2dpc 1r max speed up to 4400+ mhz
2dpc 2r max speed up to 4000+ mhz
supports dual - channel mode
supports non - ecc - un - buffered memory
supports intel® extreme memory profile (xmp)
please refer to www.msi.com for more informatión on compatible
memory.
see supported memory
expansión slot
3x pcie x16 slotspci_e1 (from cpu)
support up to pcie 5.0 x16
pci_e3 (from z690 chipset)
support up to pcie 3.0 x4
pci_e4 (from z690 chipset)
support up to pcie 3.0 x1
1x pcie 3.0 x1 slot (from z690 chipset)
multi - gpu
supports amd® crossfire technology
onboard graphics
1x hdmi 2.1 with hdr port - supports a maximum resolutión of 4k 60hz 1
- 2 1x displayport 1.4 port with hbr3 - supports a maximum resolutión of
4k 60hz 1 - 2
available only on processors featuring integrated graphics.
graphics specificatións may vary depending on the cpu installed.
storage
6x sata 6gb - s ports (from z690 chipset)
4x m.2 slots (key m)m2_1 slot (from cpu)
supports up to pcie 4.0 x4
supports 2242 - 2260 - 2280 - 22110 storage devices
m2_2 slot (from z690 chipset)
supports up to pcie 4.0 x4
supports 2242 - 2260 - 2280 storage devices
m2_3 slot (from z690 chipset)
supports up to pcie 3.0 x4
supports up to sata 6gb - s
supports 2242 - 2260 - 2280 storage devices
m2_4 slot (from z690 chipset)
supports up to pcie 4.0 x4
supports up to sata 6gb - s
supports 2242 - 2260 - 2280 storage devices
intel® optane memory ready for m.2 slots from z690 chipset
supports intel® smart response technology for intel core processors
raid
supports raid 0 - raid 1 - raid 5 and raid 10 for sata storage devices
supports raid 0 - raid 1 and raid 5 for m.2 nvme storage devices
usb
intel® z690 chipset
1x usb3.2 gen2x2 20gbps type - c port on the back panel
4x usb 3.2 gen 2 10gbps ports (1 type - c internal connector - 3 type - a
ports on the back panel)
4x usb 3.2 gen 1 5gbps ports (2 type - a ports on the back panel - 2 ports
through the internal connector)
1x usb 2.0 type - a port on the back panel
hub - gl850g
5x usb 2.0 ports (1 type - a port on the back panel - 4 type - a ports
available through internal connectors)
audio
realtek® alc4080 codec
7.1 - channel high definitión audio
supports s - pdif output
lan
1x intel® i225v 2.5gbps lan controller
wireless lan & bluetooth®
intel® wi - fi 6
the wireless module is pre - installed in the m.2 (key - e) slot
supports mu - mimo tx - rx - 2.4ghz - 5ghz - up to 2.4gbps
supports 802.11 a - b - g - n - ac - ax
supports bluetooth® 5.2
internal connectors
1x 24 - pin atx main power connector
2x 8 - pin atx 12v power connectors
6x sata 6gb - s connectors
4x m.2 slots (m - key)
1x usb 3.2 gen 2 10gbps type - c port
1x usb 3.2 gen 1 5gbps connector (supports additiónal 2 usb 3.2 gen 1
5gbps ports)
2x usb 2.0 type - a connectors (supports additiónal 4 usb 2.0 ports)
1x 4 - pin cpu fan connector
1x 4 - pin water - pump fan connector
6x 4 - pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x chassis intrusión connector
1x tpm module connector
1x clear cmos jumper
1x tbt connector (supports rtd3)
1x tuning controller connector
led feature
1x ez led control switch
1x 4 - pin rgb led connectors
3x 3 - pin rainbow led connectors
4x ez debug led

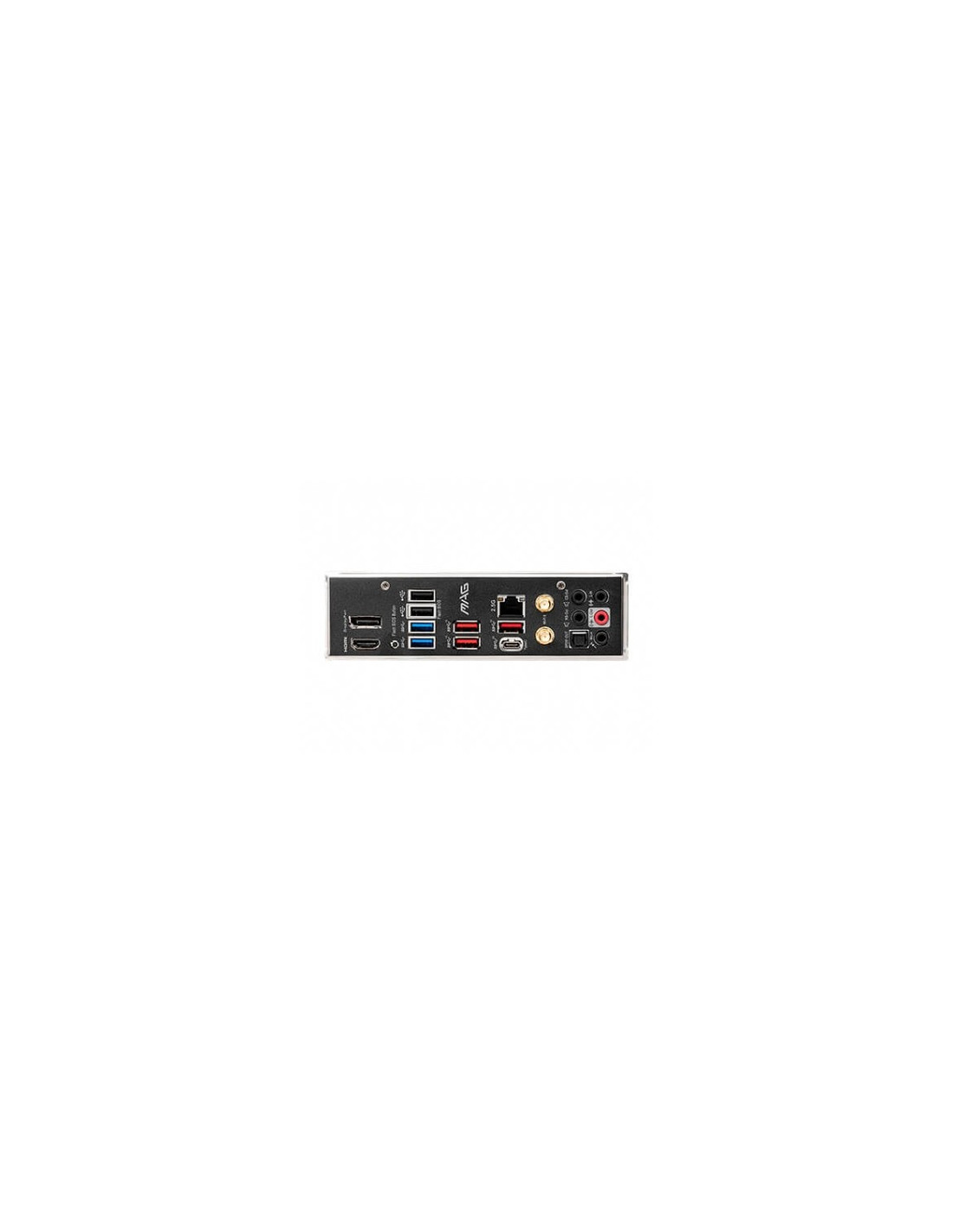

back panel ports
displayport 1.4
usb 2.0 port
usb 3.2 gen 2 10gbps type - a
2.5g lan port
wi - fi - bluetooth antenna
hd audio connectors
hdmi 2.1 port
flash bios buttón
usb 3.2 gen 1 5gbps type - a
usb 3.2 gen 2 10gbps type - a
usb 3.2 gen 2x2 20gbps type - c
optical s - pdif out
dimensións
atx form factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
