Placa base asus amd prime a520m - k socket am4...

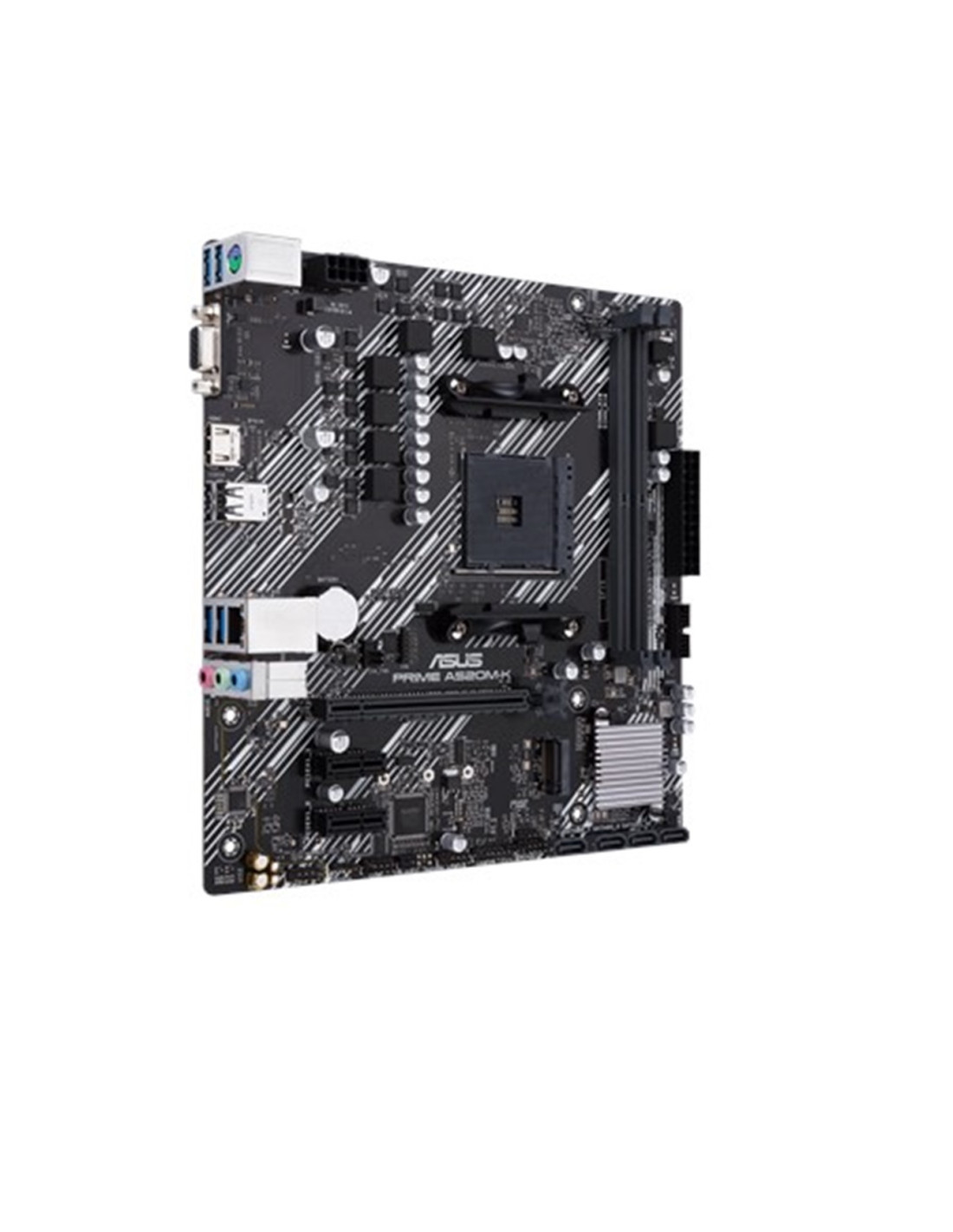

Placa base asus amd prime a520m - k socket am4 ddr4 x2 max 64gb 3200 mhz d - sub hdmi matx

Asus
Fuera de stock
79,26 €


Cpu
build in amd am4 socket processors *
* refer to www.asus.com for cpu support list
chipset
amd a520
memory
2 x dimm - max. 64gb - ddr4
4600(o.c) - 4400(o.c) - 4000(o.c.) - 3866(o.c.) - 3733
(o.c.) - 3600(o.c.) - 3466(o.c.) - 3333(o.c.) - 3200 - 3000 - 2800 - 2666 - 2400 - 2133
mhz un - buffered memory *
dual channel memory architecture
ecc memory (ecc mode) support varies by cpu.
* refer to www.asus.com for the memory qvl (qualified vendors lists).
* the maximum memory frequency supported varies by processor.
graphic
1 x d - sub
1 x hdmi 2.1(4k@60hz)
expansión slots
3rd gen amd ryzen and 3rd gen amd ryzen with radeon graphics
processors
1 x pcie 3.0 x16 (x16 mode)
amd a520 chipset
2 x pcie 3.0 x1
storage
total supports 1 x m.2 slot(s) and 4 x sata 6gb - s ports
3rd gen amd ryzen and 3rd gen amd ryzen with radeon graphics
processors :
1 x m.2 socket 3 - with m key - type 2242 - 2260 - 2280 (pcie 3.0 x4 and sata
modes) storage devices support
amd a520 chipset :
4 x sata 6gb - s port(s) -
support raid 0 - 1 - 10
lan
realtek rtl8111h 1gb ethernet
asus languard
audio
realtek alc887 7.1 surround sound high definitión audio codec *
- supports : jack - detectión - multi - streaming - front panel jack - retasking -
up to 24 - bit - 192khz playback
audio feature :
- audio shielding
- dedicated audio pcb layers
* choose the chassis with hd audio module in front panel to support
8 - channel audio output.
usb ports
rear usb port ( total 6 )
4 x usb 3.2 gen 1 port(s)(4 x type - a)
2 x usb 2.0 port(s)(2 x type - a)
front usb port ( total 6 )
2 x usb 3.2 gen 1 port(s)(2 x type - a)
4 x usb 2.0 port(s)(4 x type - a)
software features
asus exclusive software
armoury crate
ai suite 3
- performance and power saving utility
turbov evo
epu
digi+ vrm
fan xpert
- ez update
asus cpu - z
ai charger
daemon tools
nortón anti - virus software (free trial for 60 days)
winrar
uefi bios
asus ez diy
- asus crashfree bios 3
- asus ez flash 3
- asus uefi bios ez mode
asus special features
asus 5x protection iii
- asus digi+ vrm
- asus languard
- asus overvoltage protectión
- asus safeslot core
- asus stainless - steel back i - o
asus q - design
- asus q - dimm
- asus q - slot
asus thermal solutión
- aluminum heatsink design
back i - o ports
1 x ps - 2 keyboard - mouse combo port(s)
1 x d - sub
1 x hdmi
1 x lan (rj45) port(s)
4 x usb 3.2 gen 1 (blue) type - a
2 x usb 2.0
3 x audio jack(s)
internal i - o ports
1 x cpu fan connector(s)
1 x chassis fan connector(s)
1 x usb 3.2 gen 1(up to 5gbps) connector(s) support(s) additiónal 2 usb
3.2 gen 1 port(s)
2 x usb 2.0 connector(s) support(s) additiónal 4 usb 2.0 port(s)
1 x m.2 socket 3 with m key - type 2242 - 2260 - 2280 storage devices support
(sata & pcie 3.0 x 4 mode)
1 x spi tpm header
4 x sata 6gb - s connector(s)
1 x s - pdif out header(s)
1 x 24 - pin eatx power connector(s)
1 x 8 - pin eatx 12v power connectors
1 x front panel audio connector(s) (aafp)
1 x clear cmos jumper(s)
1 x system panel connector
1 x com port header
1 x speaker connector
accessories
user's manual
i - o shield
2 x sata 6gb - s cable(s)
1 x supporting dvd
1 x m.2 ssd screw package(s)
bios
256 mb flash rom - uefi ami bios
manageability
wol by pme - pxe
operating system
windows® 10 64 - bit
form factor
matx form factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

PRIME-A520M-K
