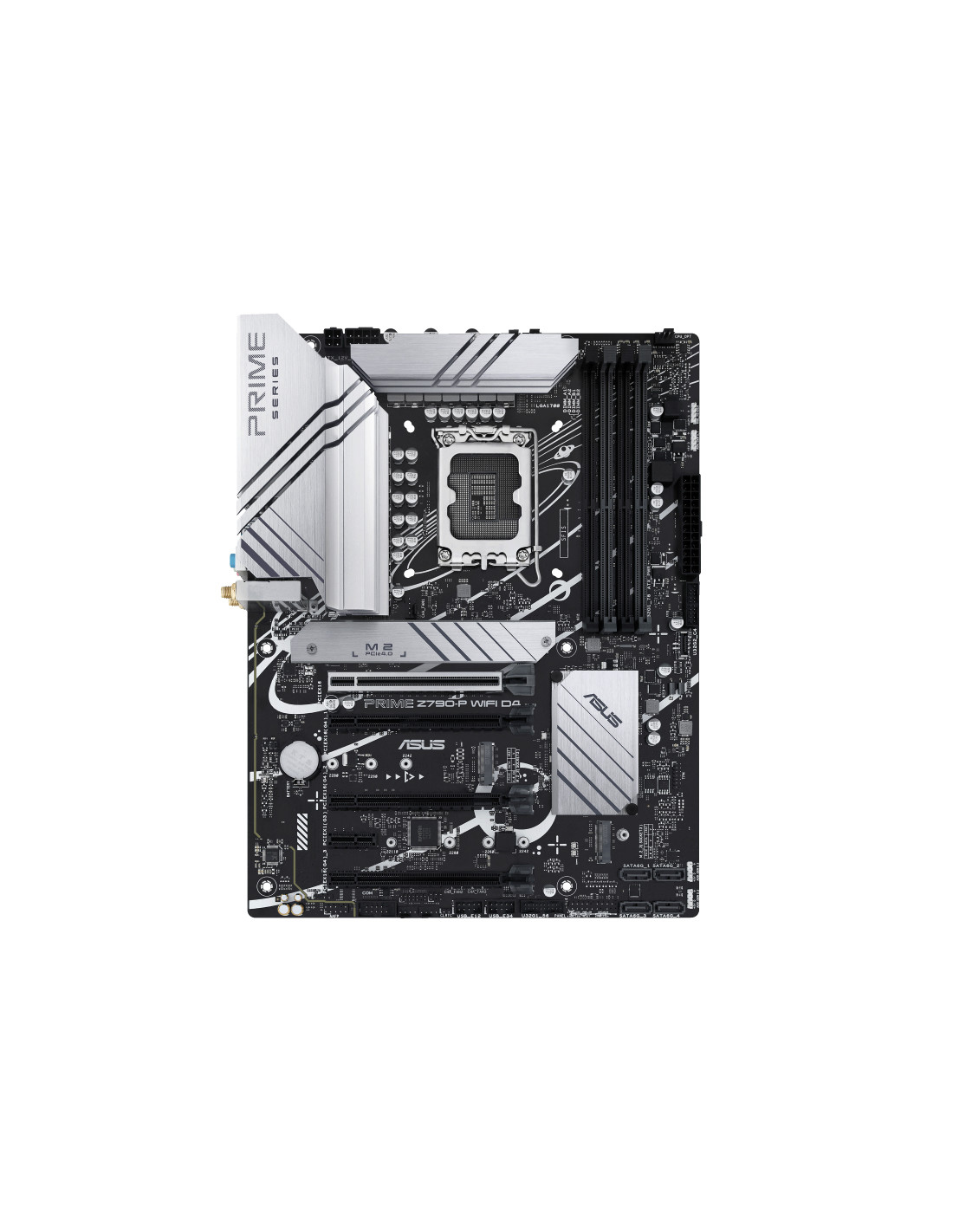

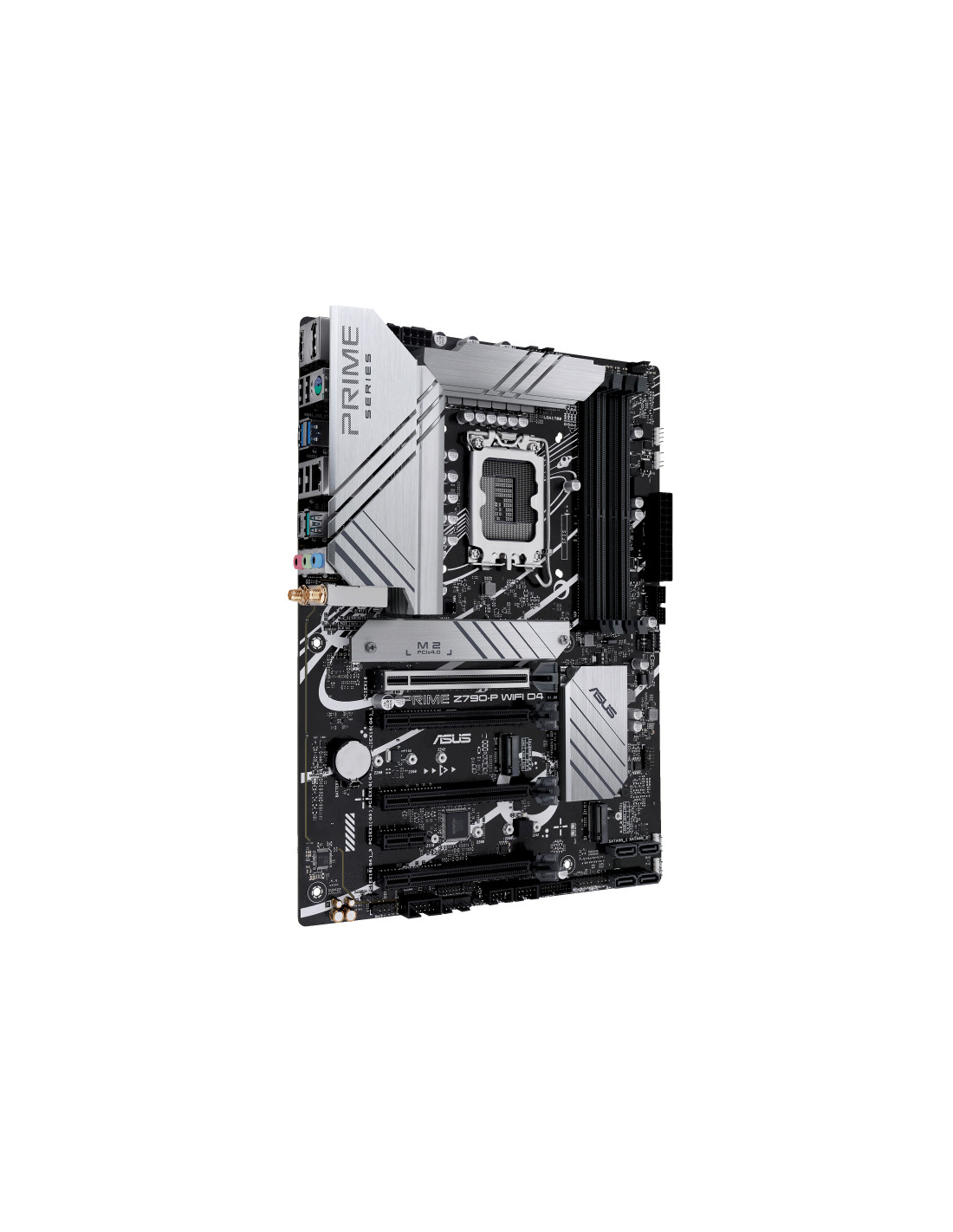

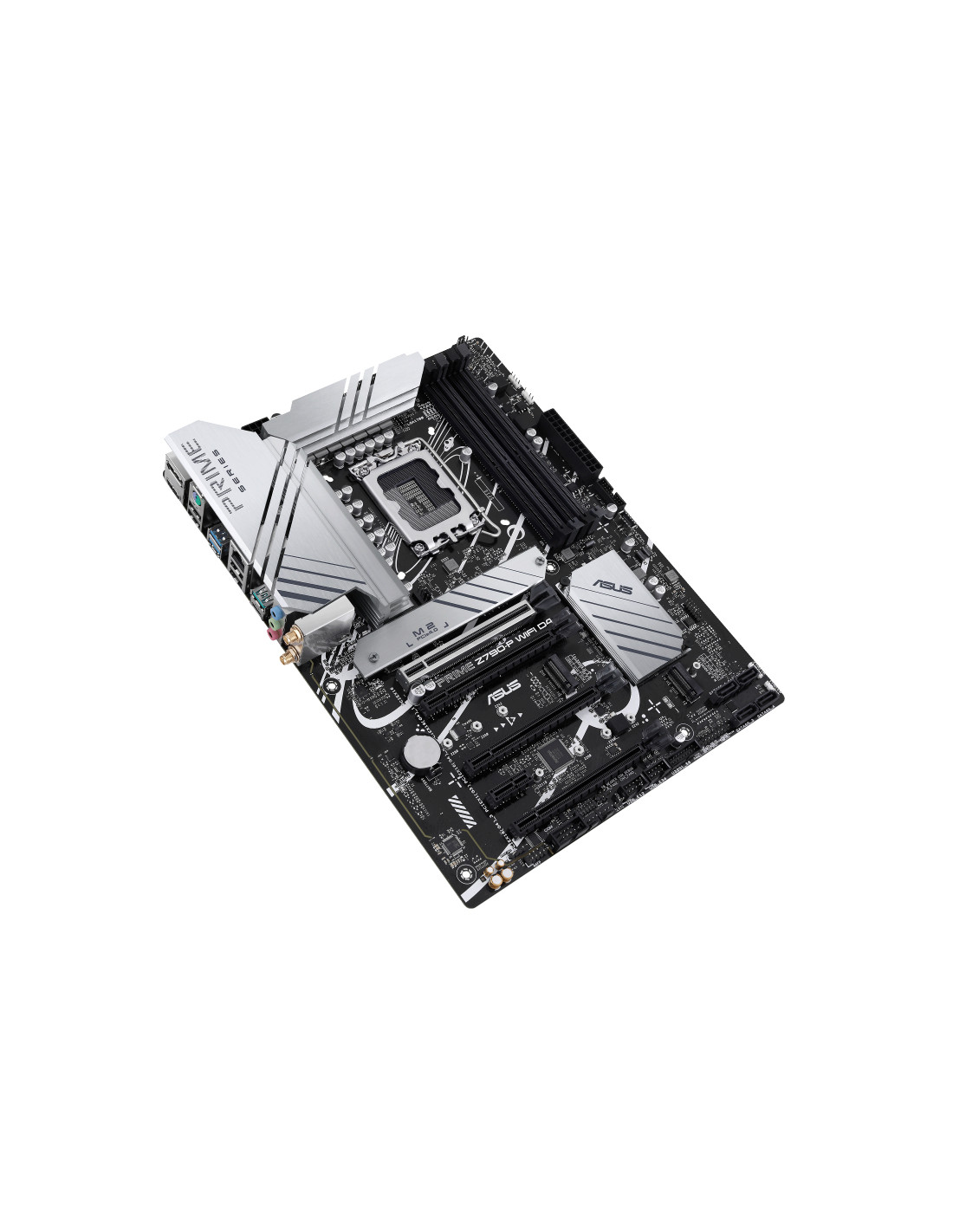

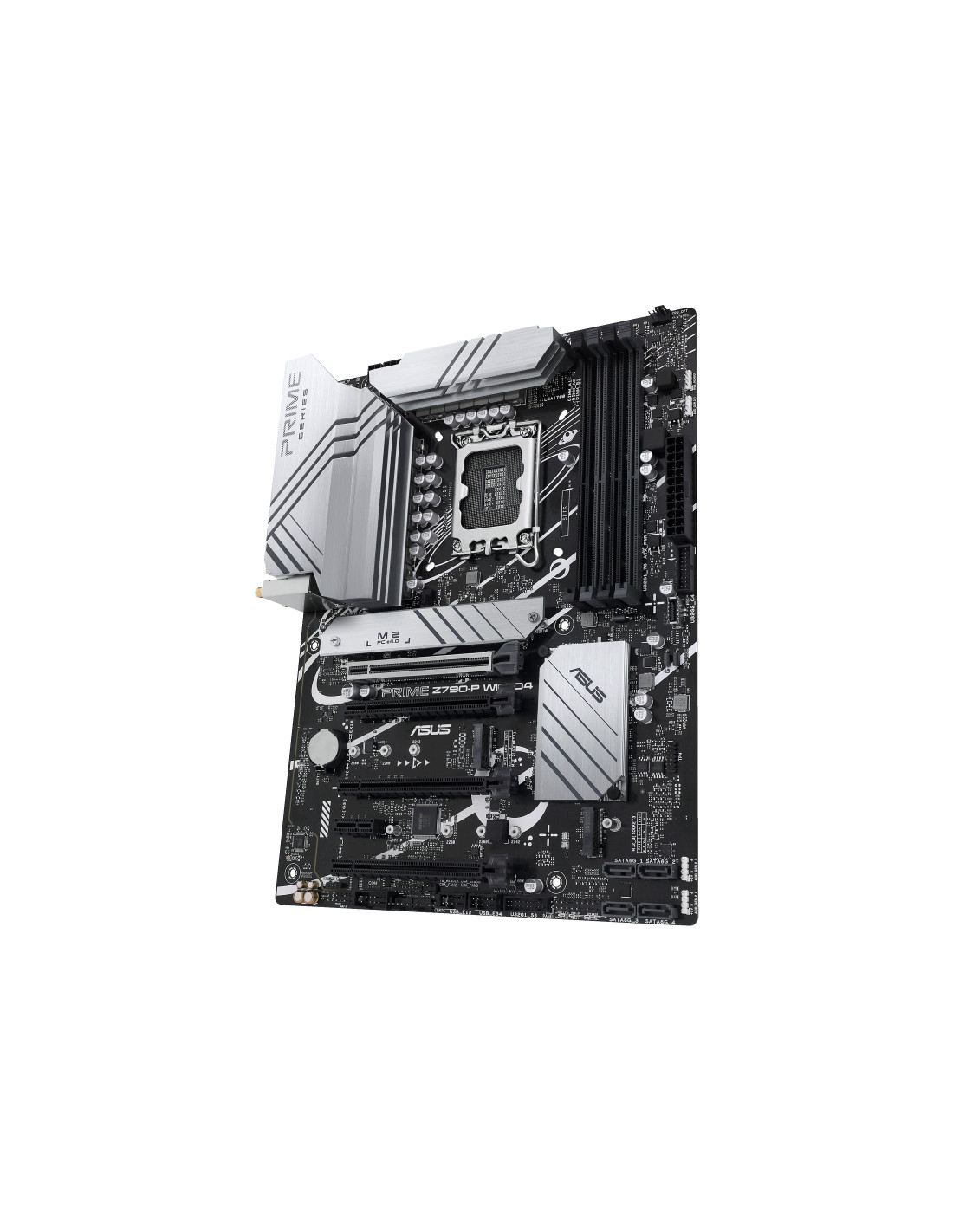

Placa base asus intel prime z790 - p wifi d4 atx - 4x ddr4 - 4x sata3 - 3x usb 3.2 - 1x usb tipo c - 4x usb 2.0 90mb1db0 -

Asus prime z790 - p wifi d4. fabricante de procesador: intel - socket de procesador: lga 1700 - procesador compatible: intel® celeron® - intel® core i3 - intel® core i5 - intel® core i7 - intel® core i9 -....
tipos de memoria compatibles: ddr4 - sdram - memoria interna máxima: 128 gb - tipo de ranuras de memoria: dimm. interfaces de disco de almacenamiento soportados: m.2 - sata iii - tipos de unidades
de almacenamiento admitidas: hdd & ssd - niveles raid: 0 - 1 - 5 - 10. tipo de interfaz ethernet: 2.5 gigabit ethernet - estándar wi - fi: wi - fi 6 (802.11ax) - wi - fi estándares: 802.11a - 802.11b - 802.11g - wi - fi
4 (802.11n) - wi - fi 5 (802.11ac) - wi - fi 6 (802.11ax). componente para: pc - factor de forma: atx - familia del chipset: intel

chipset
intel® z790 chipset
memoria
4 x dimm - max. 128gb - ddr4 5333(oc) - 5133(oc) - 5066(oc) - 5000(oc) - 4800(oc) - 4700(oc) - 4600(oc) - 4500(oc) - 4400(oc) - 4266(oc) - 4133(oc) - 4000(oc) - 3866(oc) - 3733(oc) - 3600(oc) - 3466(oc) - 3400
(oc) - 3333(oc) - 3200 - 3000 - 2933 - 2800 - 2666 - 2400 - 2133 non - ecc - un - buffered memory*
dual channel memory architecture
supports intel® extreme memory profile (xmp)
optimem ii
* supported memory types - data rate(speed) - and number of dram modules vary depending on the cpu and memory configuratión - for more informatión refer to www.asus.com for memory support list.
gráficos
1 x displayport**
1 x hdmi® port***
*graphics specificatións may vary between cpu types. please refer to www.intel.com for any updates.
** supports max. 4k@60hz as specified in displayport 1.4.
*** supports 4k@60hz as specified in hdmi 2.1.
ranuras de expansión
intel® 13th & 12th gen processors*
1 x pcie 5.0 x16 slot
intel® z790 chipset
3 x pcie 4.0 x16 slots (support x4 mode)
1 x pcie 3.0 x1 slot
* please check the pcie bifurcatión table on the support site (https: - - www.asus.com - support - faq - 1037507 - ).
- to ensure compatibility of the device installed - please refer to https: - - www.asus.com - support - for the list of supported peripherals.
almacenamiento
total supports 3 x m.2 slots and 4 x sata 6gb - s ports*
intel® 13th & 12th gen processors
m.2_1 slot (key m) - type 2242 - 2260 - 2280 - 22110 (supports pcie 4.0 x4 mode)
intel® z790 chipset
m.2_2 slot (key m) - type 2242 - 2260 - 2280 (supports pcie 4.0 x4 mode)
m.2_3 slot (key m) - type 2242 - 2260 - 2280 - 22110 (supports pcie 4.0 x4 & sata modes)
4 x sata 6gb - s ports
* intel® rapid storage technology supports pcie raid 0 - 1 - 5 - 10 - sata raid 0 - 1 - 5 - 10.
ethernet
1 x realtek 2.5gb ethernet
wireless & bluetooth
wi - fi 6
2x2 wi - fi 6 (802.11 a - b - g - n - ac - ax)
supports 2.4 - 5ghz frequency band
bluetooth® v5.2
usb
rear usb (total 8 ports)
1 x usb 3.2 gen 2x2 port (1 x usb type - c®)
1 x usb 3.2 gen 2 port (1 x type - a)
2 x usb 3.2 gen 1 ports (2 x type - a)
4 x usb 2.0 ports (4 x type - a)
front usb (total 9 ports)
1 x usb 3.2 gen 2 connector (supports usb type - c®)
2 x usb 3.2 gen 1 headers support 4 additiónal usb 3.2 gen 1 ports
2 x usb 2.0 headers support 4 additiónal usb 2.0 ports
* usb_e1 port - usb_e2 port - usb_e3 port and usb_e4 port share the bandwidth.
* usb_e5 port - usb_e6 port - usb_e7 port and usb_e8 port share the bandwidth.
audio
realtek 7.1 surround sound high definitión audio codec*
- supports: jack - detectión - multi - streaming - front panel jack - retasking
- supports up to 24 - bit - 192 khz playback
audio features
- audio shielding
- premium audio capacitors
- dedicated audio pcb layers
* a chassis with an hd audio module in the front panel is required to support 7.1 surround sound audio output.

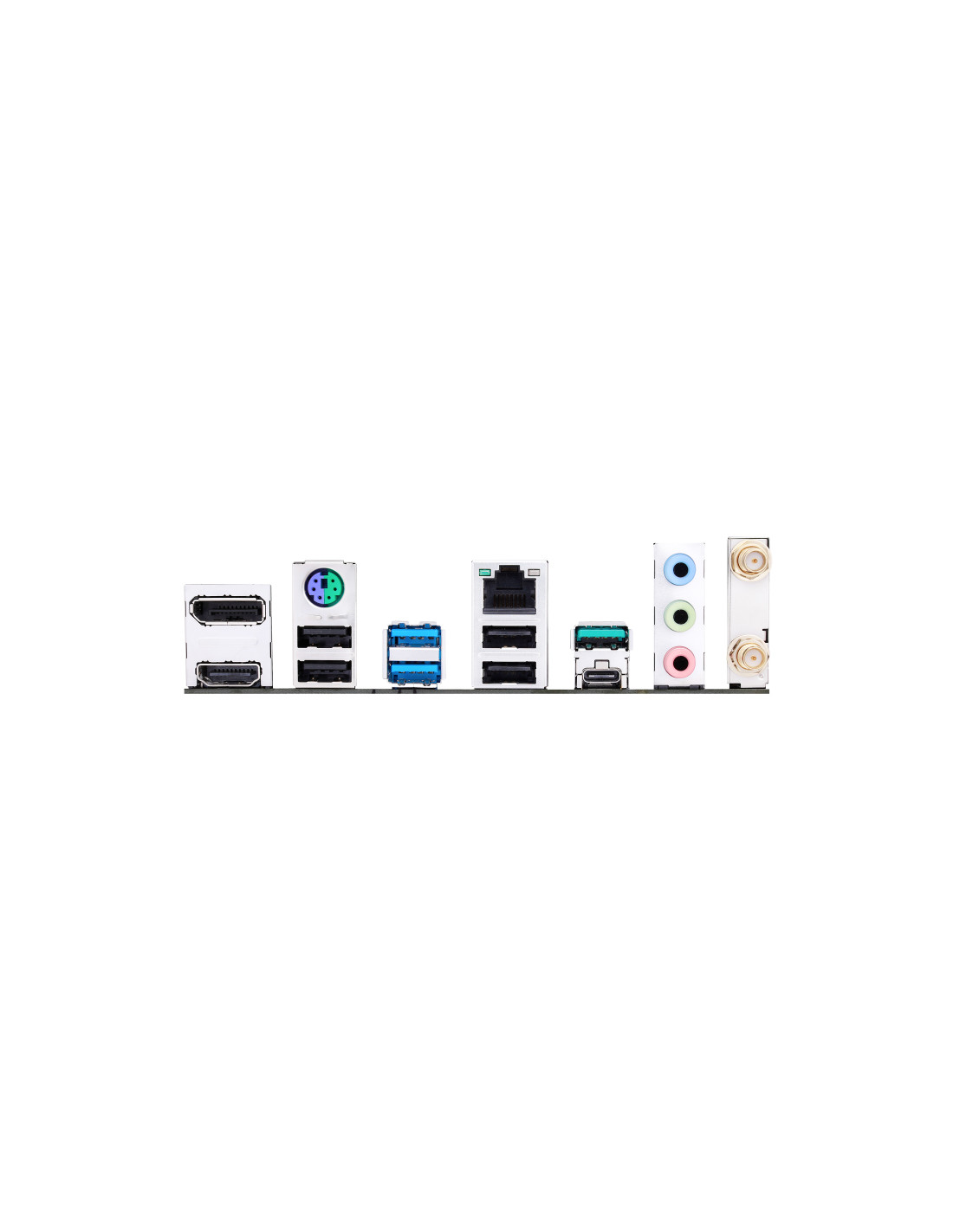

puertos de e - s del panel posterior
1 x usb 3.2 gen 2x2 port (1 x usb type - c®)
1 x usb 3.2 gen 2 port (1 x type - a)
2 x usb 3.2 gen 1 ports (2 x type - a)
4 x usb 2.0 ports (4 x type - a)
1 x displayport
1 x hdmi® port
1 x wi - fi module
1 x realtek 2.5gb ethernet port
3 x audio jacks
1 x ps - 2 keyboard - mouse combo port
conectores de e - s internos
fan and cooling related
1 x 4 - pin cpu fan header
1 x 4 - pin cpu opt fan header
1 x 4 - pin aio pump header
3 x 4 - pin chassis fan headers
power related
1 x 24 - pin main power connector
1 x 8 - pin +12v power connector
1 x 4 - pin +12v power connector
storage related
3 x m.2 slots (key m)
4 x sata 6gb - s ports
usb
1 x usb 3.2 gen 2 connector (supports usb type - c®)
2 x usb 3.2 gen 1 headers support 4 additiónal usb 3.2 gen 1 ports
2 x usb 2.0 headers support 4 additiónal usb 2.0 ports
miscellaneous
3 x addressable gen 2 headers
1 x aura rgb header
1 x clear cmos header
1 x com port header
1 x front panel audio header (aafp)
1 x s - pdif out header
1 x spi tpm header (14 - 1pin)
1 x 20 - 5pin system panel header
1 x thunderbolt (usb4®) header
características especiales
asus 5x protection iii
- digi+ vrm ( - digital power design with drmos)
- languard
- overvoltage protectión
- safeslot core+
- stainless - steel back i - o
asus q - design
- q - dimm
- q - slot
- q - led core
asus thermal solutión
- flexible m.2 heatsink
- vrm heatsink design
asus ez diy
- procool
aura sync
- aura rgb header
- addressable gen 2 headers
funciónes de software
asus exclusive software
armoury crate
- aura sync
- fan xpert 4 (with ai cooling ii)
- power saving
ai suite 3
- turbov evo
- pc cleaner
- digi+ vrm
asus cpu - z
myasus
nortón 360 deluxe (60 days free trial)
winrar
uefi bios
asus ez diy
- asus crashfree bios 3
- asus ez flash 3
- asus uefi bios ez mode
bios
192 (128+64) mb flash rom - uefi ami bios
manejabilidad
wol by pme - pxe

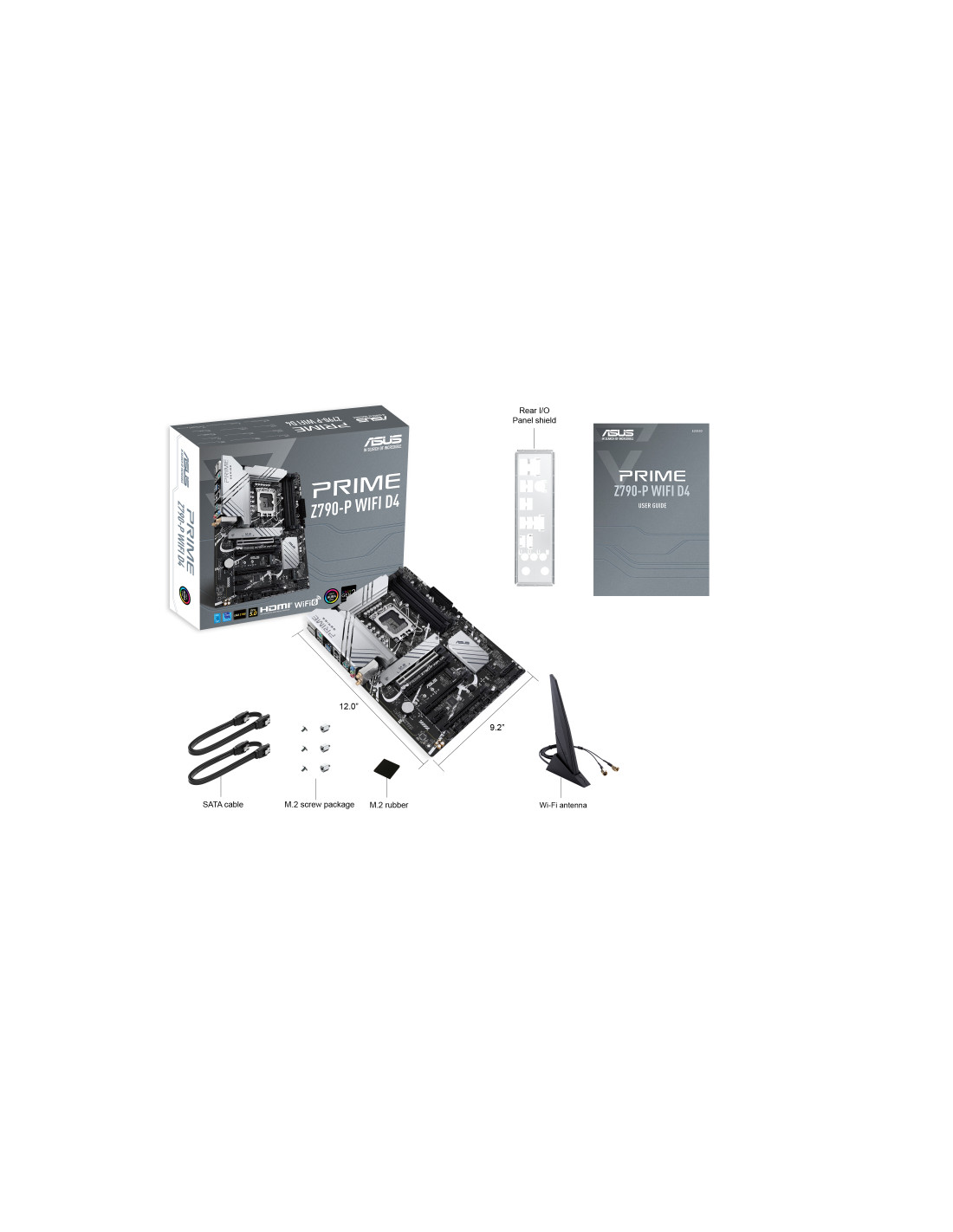

accesorios
cables
2 x sata 6gb - s cables
miscellaneous
1 x asus wi - fi moving antennas
1 x i - o shield
1 x m.2 rubber package
2 x screw packages for m.2 ssd
documentatión
1 x user guide
sistema operativo
windows® 11 - windows® 10 64 - bit
factor de forma
atx form factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
