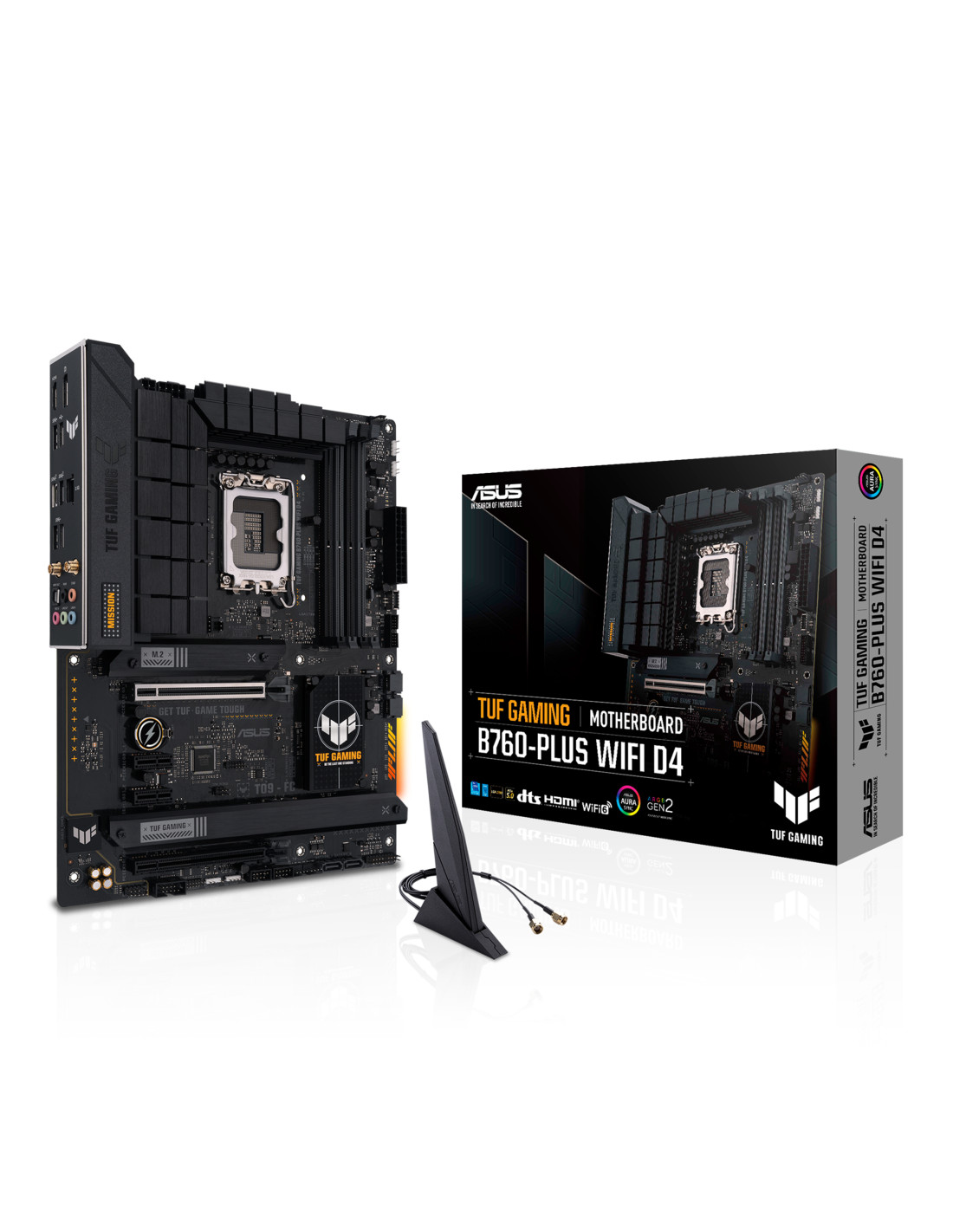

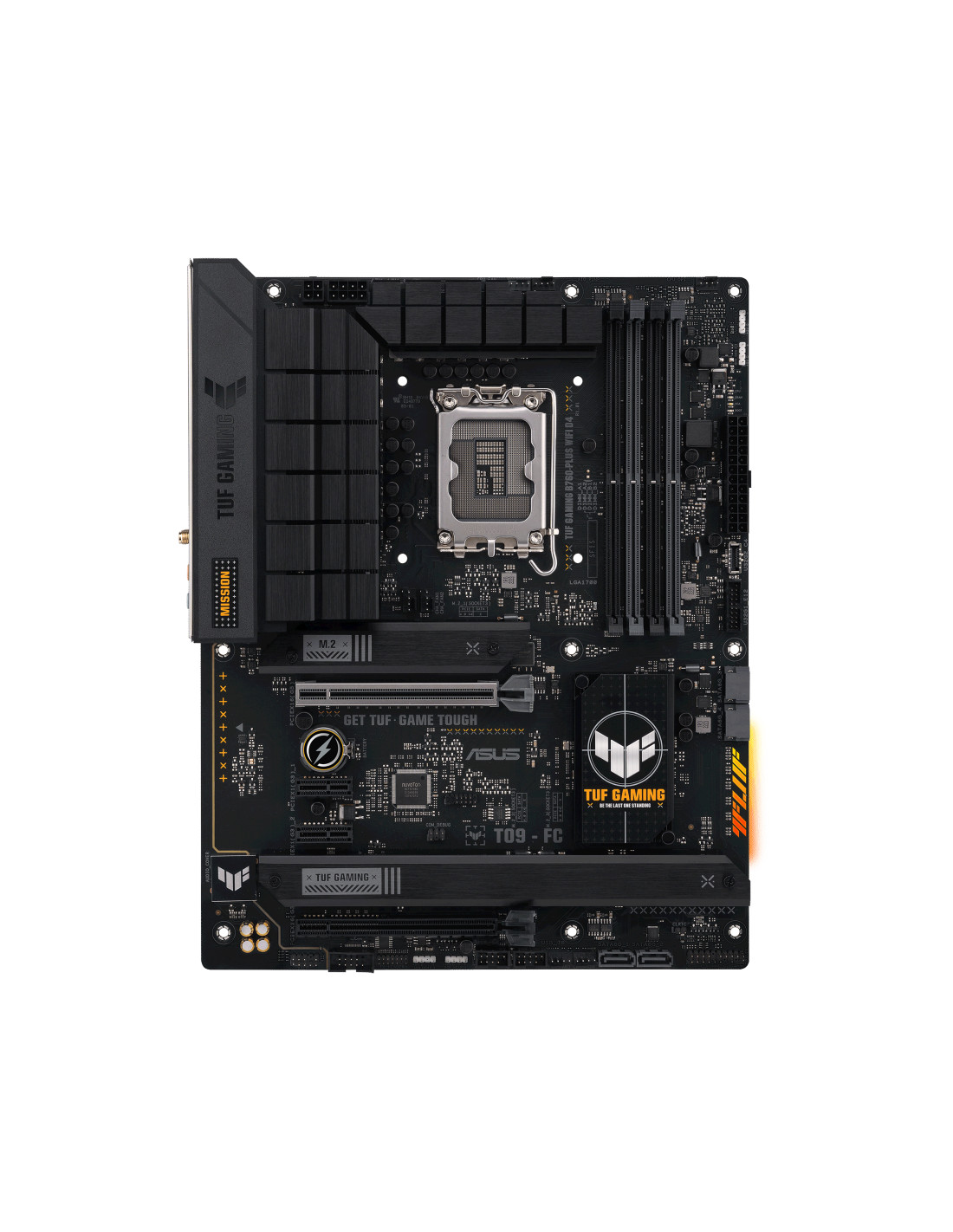

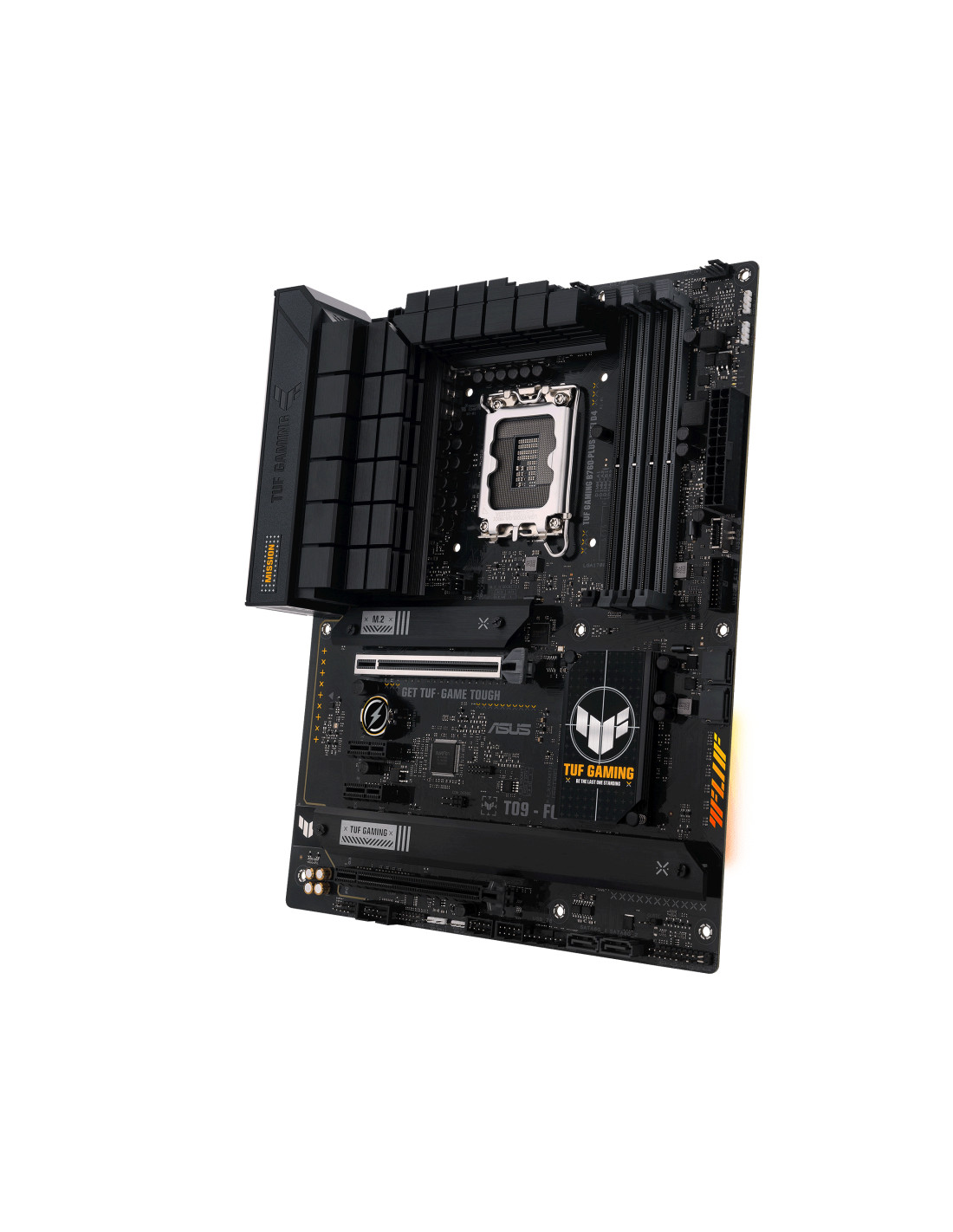

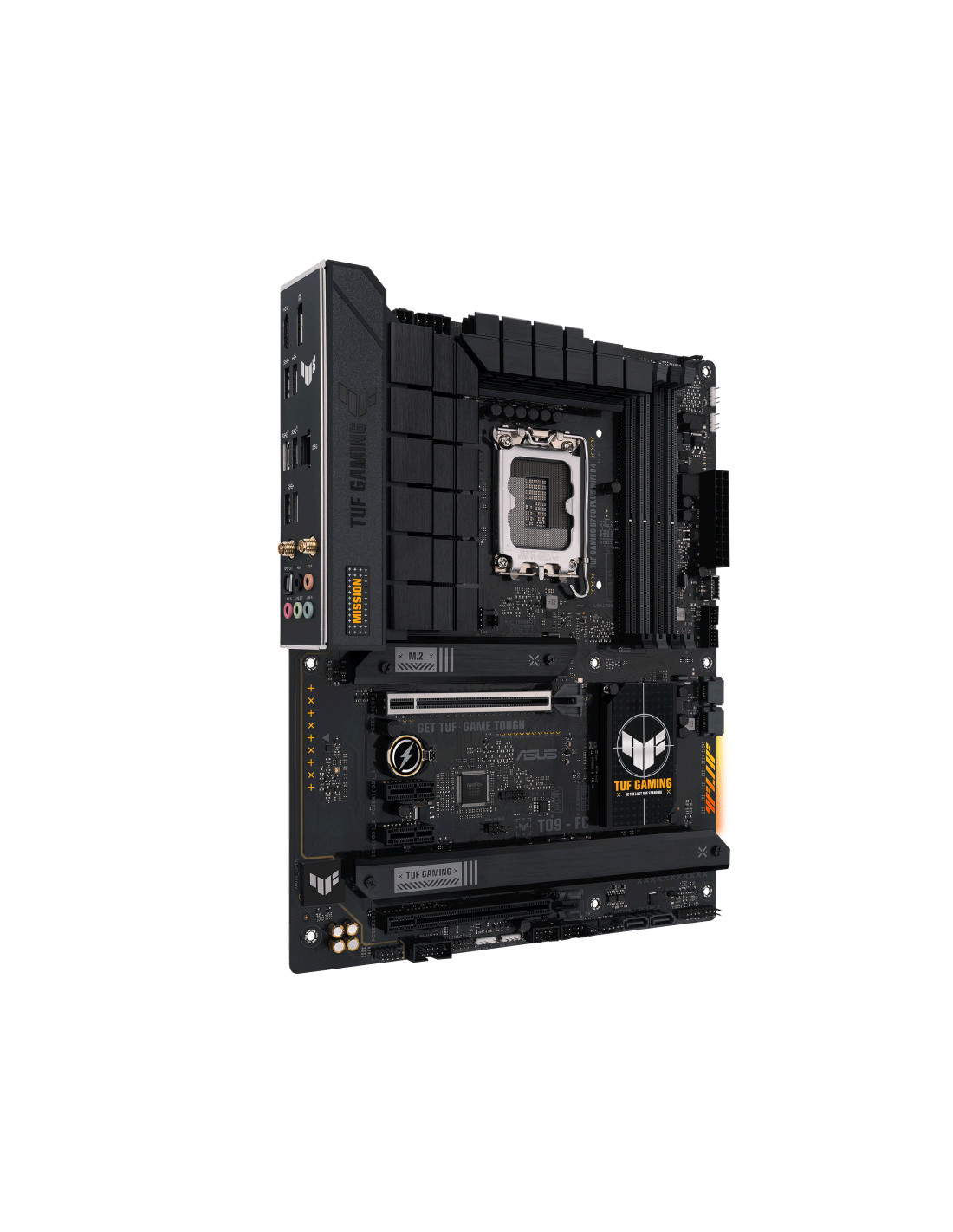

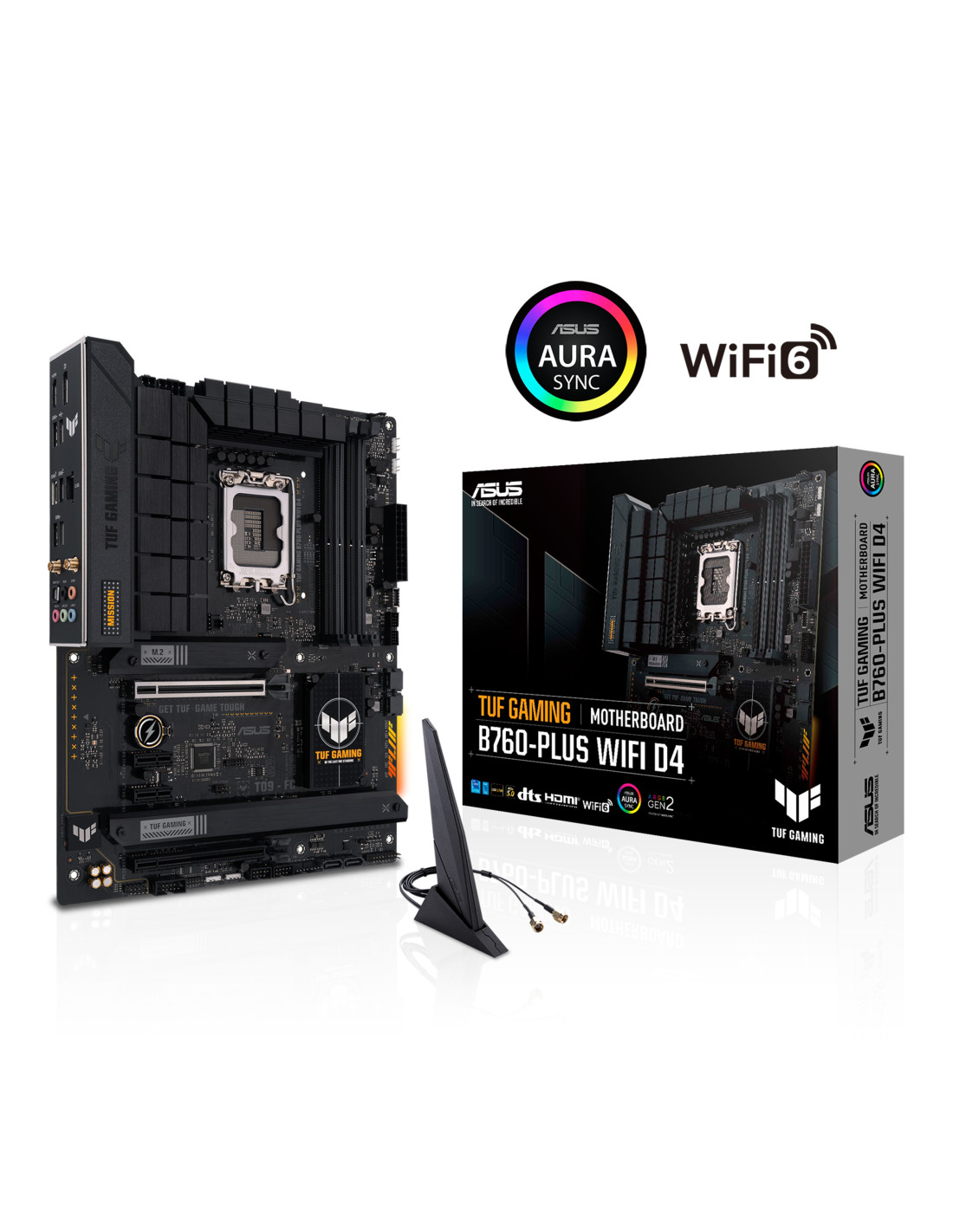

Placa base asus intel tuf gaming b760 - plus wifi d4 atx - 4x ddr4 - 4x sata 6gb - s - 4x usb 3.2 - 1x usb tipo c - 1x usb

Asus tuf gaming b760 - plus wifi d4. fabricante de procesador: intel - socket de procesador: lga 1700 - procesador compatible: intel® celeron® - intel® core i3 - intel® core i5 - intel® core i7 -
intel® core i9 -.... tipos de memoria compatibles: ddr4 - sdram - memoria interna máxima: 128 gb - tipo de ranuras de memoria: dimm. interfaces de disco de almacenamiento soportados: m.2 - sata
iii - tipos de unidades de almacenamiento admitidas: hdd & ssd - niveles raid: 0 - 1 - 5 - 10. tipo de interfaz ethernet: 2.5 gigabit ethernet - estándar wi - fi: wi - fi 6 (802.11ax) - wi - fi estándares:
802.11a - 802.11b - 802.11g - wi - fi 4 (802.11n) - wi - fi 5 (802.11ac) - wi - fi 6 (802.11ax). componente para: pc - factor de forma: atx - familia del chipset: intel

cpu
intel® socket lga1700 for 13th gen intel® core & 12th gen intel® core - pentium® gold and celeron® processors*
supports intel® turbo boost technology 2.0 and intel® turbo boost max technology 3.0**
* refer to www.asus.com for cpu support list.
** intel® turbo boost max technology 3.0 support depends on the cpu types.
chipset
intel® b760 chipset
memoria
4 x dimm - max. 192gb - ddr4
5333(oc) - 5066(oc) - 5000(oc) - 4800(oc) - 4600(oc) - 4400(oc) - 4266(oc) - 4000(oc) - 3733(oc) - 3600(oc) - 3466(oc) - 3400(oc) - 3333(oc) - 3200 - 3000 - 2933 - 2800 - 2666 - 2400 - 2133 non - ecc - un - buffered
memory*
dual channel memory architecture
supports intel® extreme memory profile (xmp)
optimem ii
* supported memory types - data rate (speed) - and number of dram modules vary depending on the cpu and memory configuratión - for more informatión please refer to cpu - memory support under
the support tab or visit https: - - www.asus.com - support -
gráficos
1 x displayport**
1 x hdmi® port***
* graphics specificatións may vary between cpu types. please refer to www.intel.com for any updates.
** supports max. 4k@60hz as specified in displayport 1.4.
*** supports 4k@60hz as specified in hdmi 2.1.
ranuras de expansión
intel® 13th & 12th gen processors
1 x pcie 5.0 x16 slot
intel® b760 chipset
1 x pcie 3.0 x16 slot (supports x4 mode)*
2 x pcie 3.0 x1 slots*
* pciex16(g3) shares bandwidth with pciex1(g3)_1 and pciex1(g3)_2 . when pciex1(g3)_1 or pciex1(g3)_2 runs at pcie x1 mode - pciex16(g3) will only run at pcie x2 mode.
- to ensure compatibility of the device installed - please refer to https: - - www.asus.com - support - for the list of supported peripherals.
almacenamiento
total supports 3 x m.2 slots and 4 x sata 6gb - s ports*
intel® 13th & 12th gen processors
m.2_1 slot (key m) - type 2242 - 2260 - 2280 (supports pcie 4.0 x4 mode)
intel® b760 chipset
m.2_2 slot (key m) - type 2242 - 2260 - 2280 - 22110 (supports pcie 4.0 x4 mode)
m.2_3 slot (key m) - type 2242 - 2260 - 2280 (supports pcie 4.0 x4 mode)
4 x sata 6gb - s ports
* intel® rapid storage technology supports sata raid 0 - 1 - 5 - 10.
ethernet
1 x realtek 2.5gb ethernet
tuf languard
wireless & bluetooth
wi - fi 6
2x2 wi - fi 6 (802.11 a - b - g - n - ac - ax)
supports 2.4 - 5ghz frequency band
bluetooth® v5.2*
*the bluetooth versión may vary - please refer to the wi - fi module manufacturer's website for the latest specificatións.pulgadas
usb
rear usb (total 6 ports)
1 x usb 3.2 gen 2x2 port (1 x usb type - c®)
1 x usb 3.2 gen 2 port (1 x type - a)
3 x usb 3.2 gen 1 ports (3 x type - a)
1 x usb 2.0 port (1 x type - a)
front usb (total 7 ports)
1 x usb 3.2 gen 2 connector (supports usb type - c®)
1 x usb 3.2 gen 1 header supports 2 additiónal usb 3.2 gen 1 ports
2 x usb 2.0 headers support 4 additiónal usb 2.0 ports
audio
realtek 7.1 surround sound high definitión audio codec
- supports: jack - detectión - multi - streaming - front panel jack - retasking
- supports up to 24 - bit - 192 khz playback
audio features
- audio shielding
- rear optical s - pdif out port
- premium audio capacitors
- dedicated audio pcb layers
- audio cover

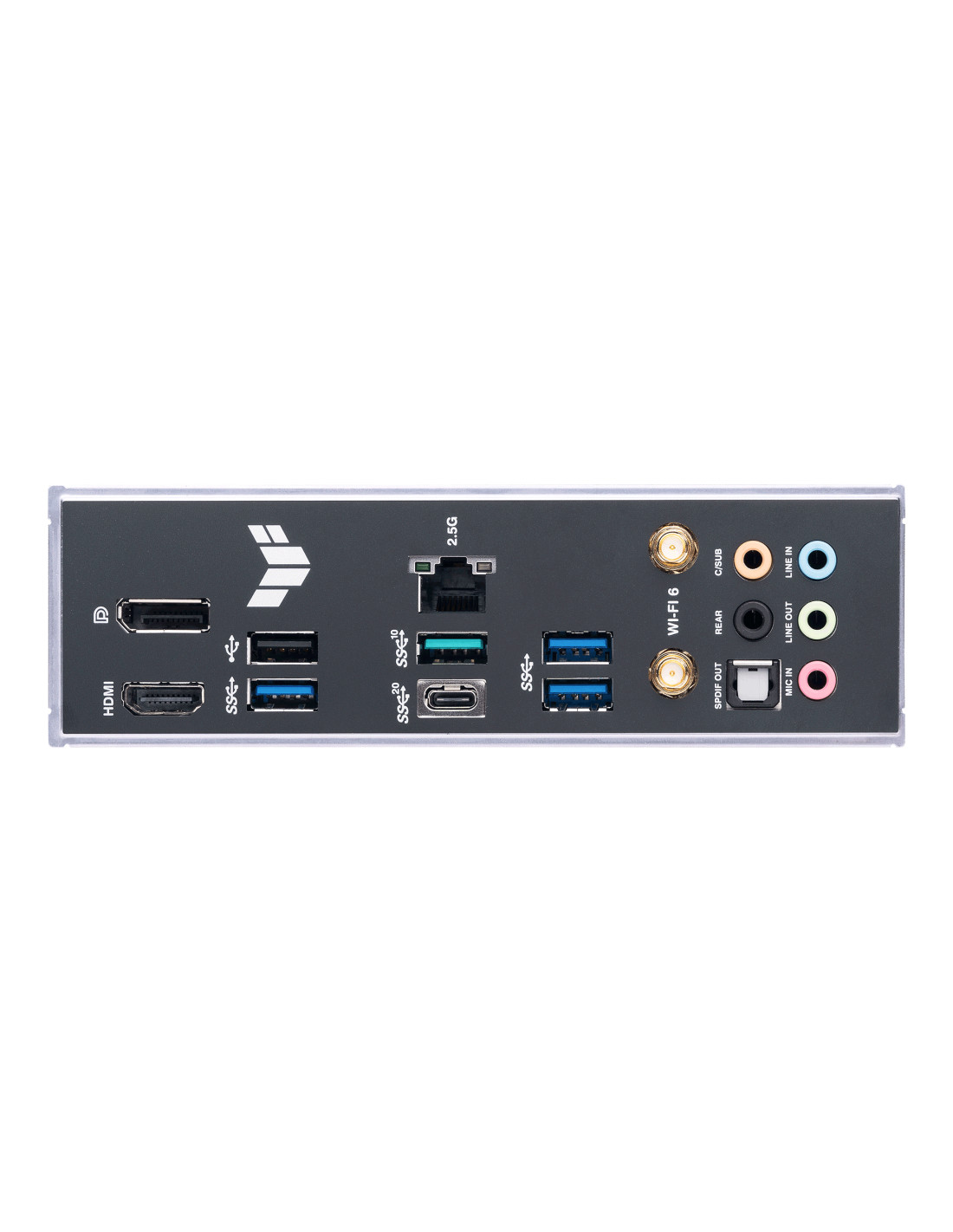

puertos de e - s del panel posterior
1 x usb 3.2 gen 2x2 port (1 x usb type - c®)
1 x usb 3.2 gen 2 port (1 x type - a)
3 x usb 3.2 gen 1 ports (3 x type - a)
1 x usb 2.0 port (1 x type - a)
1 x displayport
1 x hdmi® port
1 x wi - fi module
1 x realtek 2.5gb ethernet port
5 x audio jacks
1 x optical s - pdif out port
conectores de e - s internos
fan and cooling related
1 x 4 - pin cpu fan header
1 x 4 - pin cpu opt fan header
1 x 4 - pin aio pump header
4 x 4 - pin chassis fan headers
power related
1 x 24 - pin main power connector
1 x 8 - pin +12v power connector
1 x 4 - pin +12v power connector
storage related
3 x m.2 slots (key m)
4 x sata 6gb - s ports
usb
1 x usb 3.2 gen 2 connector (supports usb type - c® )
1 x usb 3.2 gen 1 header supports 2 additiónal usb 3.2 gen 1 ports
2 x usb 2.0 headers support 4 additiónal usb 2.0 ports
miscellaneous
3 x addressable gen 2 headers
1 x aura rgb header
1 x clear cmos header
1 x com port header
1 x front panel audio header (aafp)
1 x 20 - 3 pin system panel header with chassis intrude functión
1 x thunderbolt (usb4®) header
características especiales
asus tuf protection
- digi+ vrm ( - digital power design with drmos)
- esd guards
- tuf languard
- overvoltage protectión
- safeslot core+
- stainless - steel back i - o
asus q - design
- m.2 q - latch
- q - dimm
- q - led (cpu [red] - dram [yellow] - vga [white] - boot device [yellow green])
- q - slot
asus thermal solutión
- m.2 heatsink
- vrm heatsink design
asus ez diy
- cpu socket lever protector
- procool
- pre - mounted i - o shield
- safeslot core+
- safedimm
aura sync
- aura rgb header
- addressable gen 2 headers
funciónes de software
asus exclusive software
armoury crate
- aura creator
- aura sync
- fan xpert 4
- power saving
- two - way ai noise cancellatión
ai suite 3
- digi+ vrm
- pc cleaner
tuf gaming cpu - z
dts audio processing
myasus
nortón 360 for gamers
winrar
uefi bios
asus ez diy
- asus crashfree bios 3
- asus ez flash 3
- asus uefi bios ez mode
bios
128 mb flash rom - uefi ami bios
manejabilidad
wol by pme - pxe
accesorios
cables
2 x sata 6gb - s cables
miscellaneous
1 x asus wi - fi moving antenna
1 x tuf gaming sticker
2 x m.2 rubber packages
1 x screw package for m.2 ssd
documentatión
1 x tuf certificatión card
1 x user guide
sistema operativo
windows® 11 - windows® 10 64 - bit
factor de forma
atx form factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
